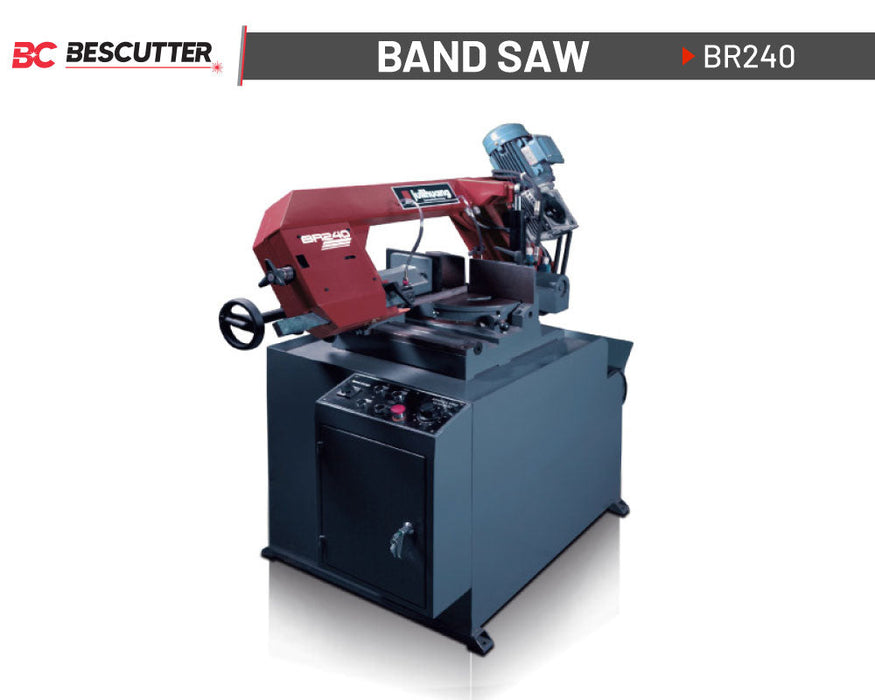

Band Saw BR240
Band Saw BR240
TECH SPECIFICATIONS
| Capacity (inch / mm): | 20° 9"/ 230mm 12.2" x 9" / 310mm x 230mm - 45° 8.26"/ 210mm 8.26" x 8.26"/210mm x 210mm - 60° 5.51"/140mm 5.51" x 3.93" / 140mm x 100mm |
| Bi-direction angle cutting: | +45°~-60° |
| Blade speed (inch/sec,m/min): | 23.62 - 45.93 (inch/sec) / 36-70 (m/min) |
| Blade size (inch/mm): | 1.06" x 0.035" x 114.56" / 27mm x 0.9mm x 29710mm |
| Vice clamping type: | Manual |
| Blade drive motor (KW): | 1.8KW/1.3KW |
| Hyd. pump motor (KW): | 0.42KW |
| Main drive: | Wormbox |
| Machine Size (L x W x H) (inch/mm): | 63" x 31.49" x 59.05" (1600mm x 800mm x 1500mm) |
