LASER POWER
From 3KW - 12 KW Laser Power
EXCHANGE TABLES
while cutting one piece, the other platform prepares for the next cut.

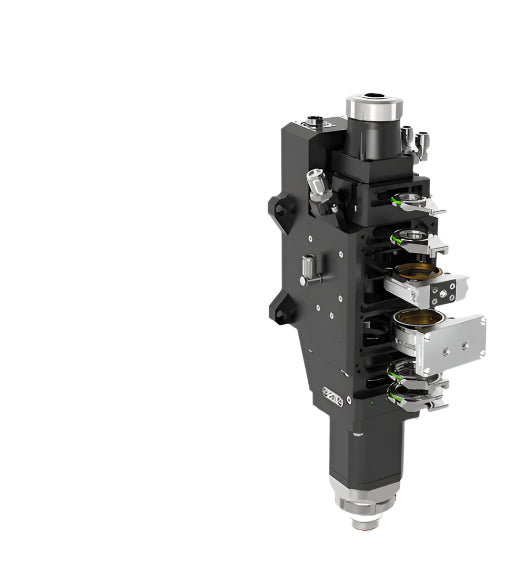

Laser Heads
BOCI BLT Laser Head
Worktable Dimensions
5x10"
DESCRIPTION

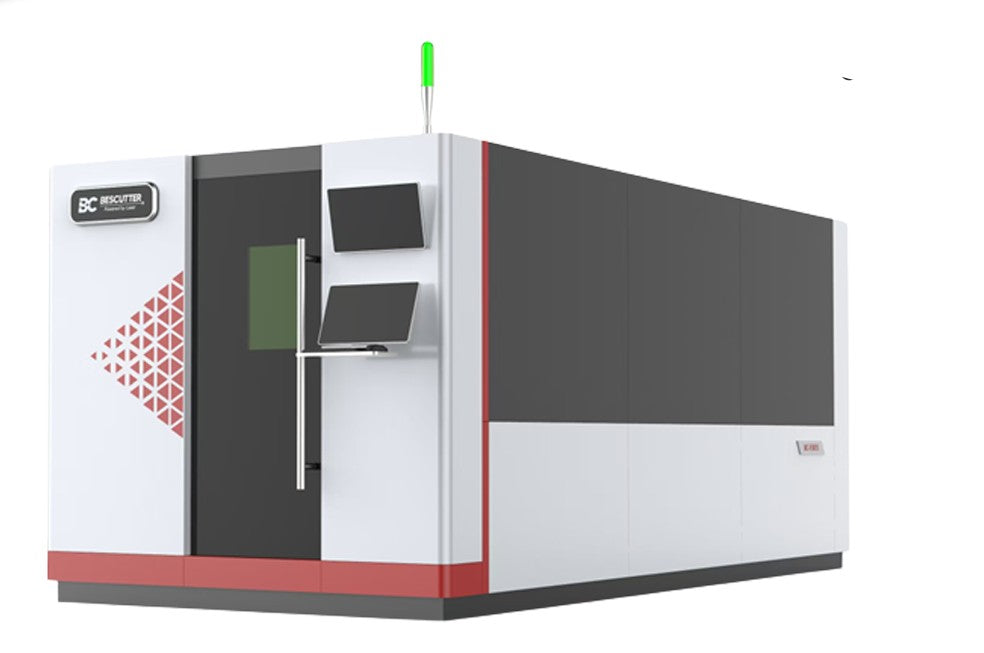

The Flash Core is a laser cutting machine equipped with a double automatic platform, ideal for continuous production. It combines high precision, efficient acceleration and a large format work area, optimizing loading and unloading times for demanding industrial processes.
FEATURES
- Wide cutting area: The working table measures 3x1.5 meters, it can be even wider depending on the customer's needs.
-
Fast movements: it moves up to 60 meters per minute, ideal for large productions.
- Automatic table: change: while cutting one piece, the other platform prepares for the next cut.
Resources
Download FLASH CORE |300W - 12000W | Fiber Laser Metal Sheet Cutter Full Enclosure Brochure and Tech Sheet
Tech specifications
| Parámetro | Especificación |
|---|---|
| Área de trabajo | 3050 × 1520 mm |
| Precisión de posicionamiento | 0.03 mm |
| Precisión de repetición | 0.02 mm |
| Velocidad máxima (XY) | 60 m/min |
| Aceleración máxima (XY) | 0.6 G |
| Recorrido eje Z | 350 mm |
| Carga de la mesa | 1100 kg |
| Dimensiones de la máquina | 8245 × 2280 × 2320 mm |
| Peso total | 3800 kg |

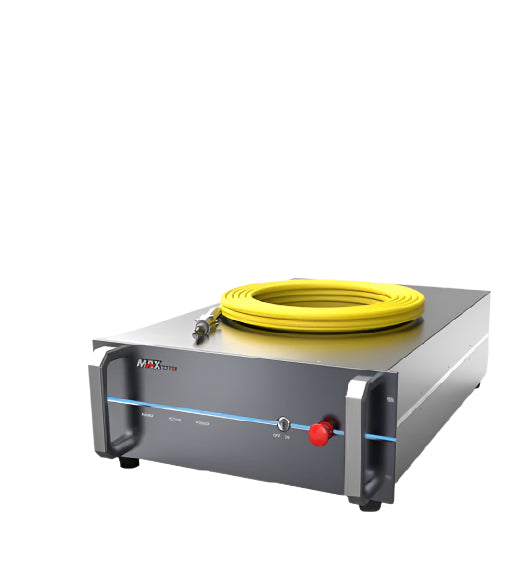

| Fuente láser | MAX / Raycus |
| Cabezal de corte | BOCI |
| Sistema de control | CYPCUT |

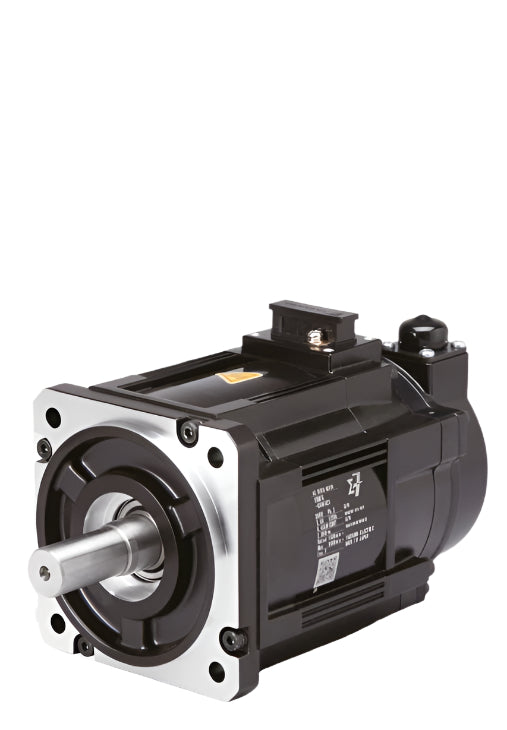

| Servomotores | INOVANCE |
| Rieles y cremalleras | TWIN |
| Reductor | MOTOVARI |
| Chiller (enfriador de agua) | S&A |
| Válvula proporcional | SMC |
| Componentes eléctricos | Schneider / Omron |
| Potencia disponible | 3kW – 12kW |
Key Components
