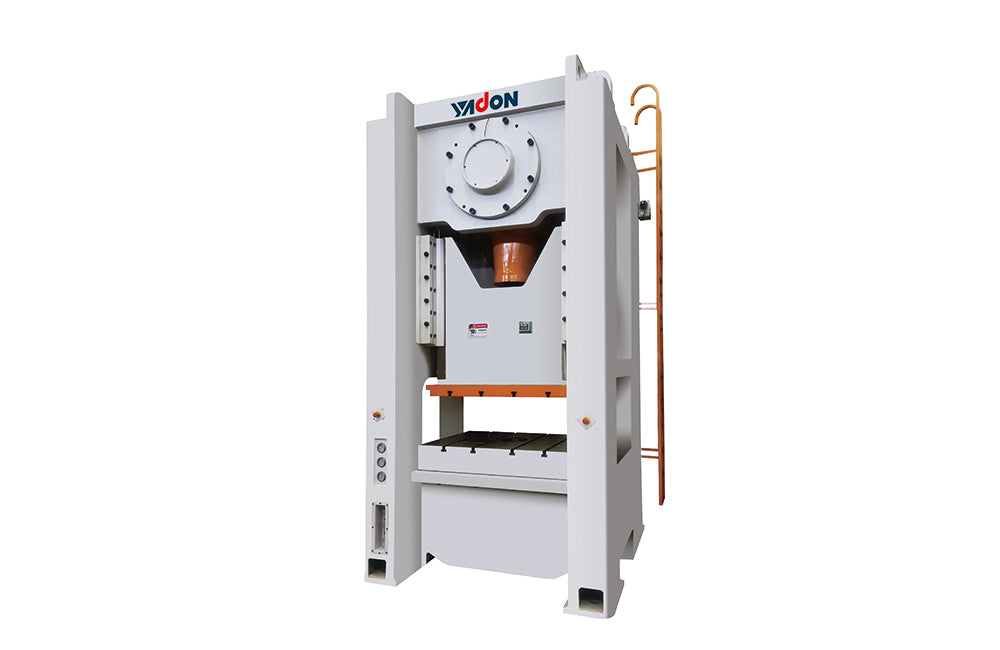

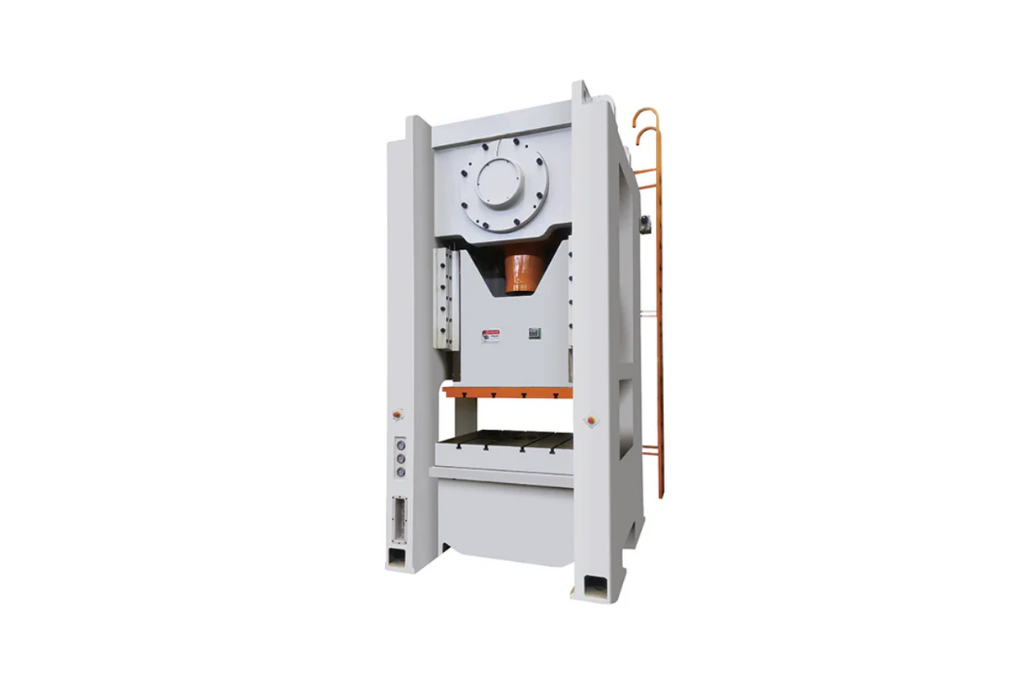

YS1 Series Straight Side Single Crank Press


DESCRIPTION

The YS1 Series Straight Side Single Crank Press by Yadon is a robust and reliable mechanical press designed for precision stamping and forming applications. It features a single crank system with a straight side frame for improved stability and high accuracy during operations. This press is ideal for high-speed, heavy-duty applications in industries such as automotive, metalworking, and electronics.

Main Structure Features:

  • High rigidity welded machine body
  • High precision eight-sided long guide rail
  • Direct drive structure, integrated servo motor and transmission shaft
  • Low-speed high-torque motor, small size, high efficiency
  • Editable slide speed during operation, high product qualification rate and production efficiency
  • Intuitive operation interface, allowing customers to find the most suitable settings
  • Energy-saving and environmentally friendly, ultra-low power consumption

Tech specifications

Download BROCHURE AND TECH SHEET

Download BROCHURE AND TECH SHEET

SPECIFICATIONS

SPECIFICATIONS

Category

NOMINAL PRESSURE

YS1-80: 800 KN // YS1-125: 1250 KN // YS1-160: 1600 KN // YS1-200: 2000 KN // YS1-250: 2500 KN // YSIZ-315: 3150 KN // YSIZ-400: 4000 KN // YSIZ-500: 5000 KN // YSIZ-630: 6300 KN // YSIZ-800: 8000 KN

MAIN MOTOR POWER

YS1-80: 7.5 KW // YS1-125: 15 KW // YS1-160: 15 KW // YS1-200: 22 KW // YS1-250: 30 KW // YSIZ-315: 37 KW // YSIZ-400: 37 KW // YSIZ-500: 55 KW // YSIZ-630: 75 KW // YSIZ-800: 75 KW

MODELS

YSI-80 // YSI-125 // YSI-160 // YSI-200 // YSI-250 // YSIZ-315 // YSIZ-400 // YSIZ-500 // YSIZ-630 // YSIZ-800
