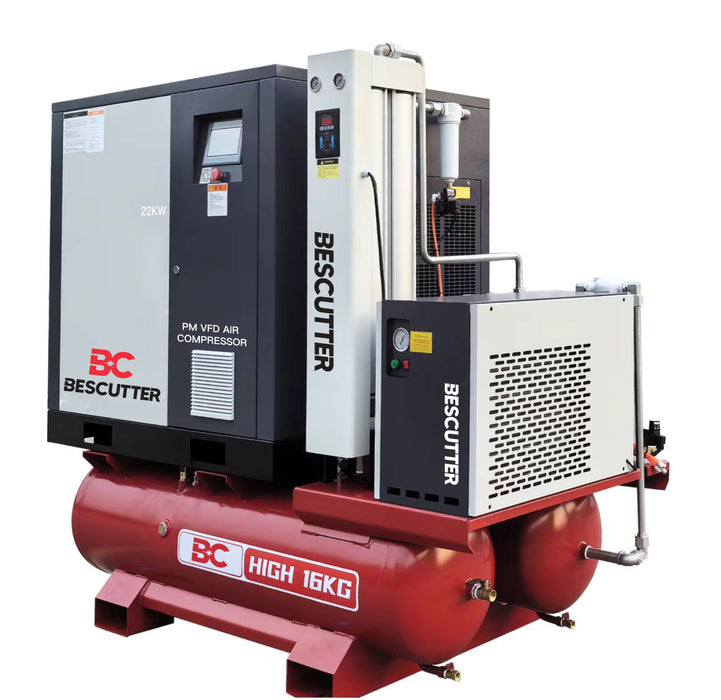

Engineered for high-performance laser cutting applications, this 22kW integrated air compressor delivers the pressure and air volume required for systems between 6000W and 12000W. It combines a powerful screw compressor, air tank, refrigeration dryer, and multi-stage filtration in a single, space-saving design.
Built for reliability and consistency, it provides clean, dry, and stable airflow to optimize cutting quality and extend the lifespan of your laser system. Ideal for industrial operations that demand durability, performance, and simplified setup.
Built to support high-power laser cutters from 6kW to 12kW
Powerful airflow and consistent performance under pressure

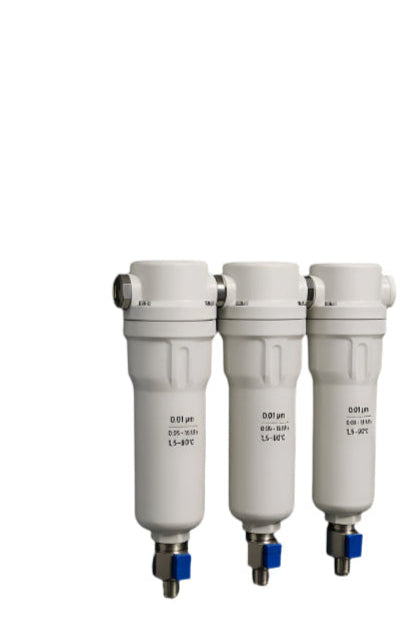

Integrated refrigerated dryer and multi-stage filtration
Ensures dry, oil-free compressed air
Robust design for demanding industrial environments
Easy setup with plug-and-play configuration
Increases system reliability and cutting quality
Download AIR COMPRESSOR 22KW | FIBER LASER CUTTING Brochure and Tech Sheet
| Feature | 22kW |
|---|---|
| Equipment Power | 22kW |
| Maximum Working Pressure | 16bar |
| Flow Rate | 2.0 m³/min |
| Air Tank Capacity | 350L |
| Equipment Configuration | Screw air compressor, air tank, cold dryer, multi-stage filtration, automatic sewage discharge |
| Model | 22kW |
| Specifications | (16bar/22kW/2.0m³/350L) |
| Size | 1700×900×1800 |
| Weight | 520KG |
| Air Compressor | 16bar/22kW/2.0m³ |
| Gas Tank | 350L |
| Cold Dryer | 16bar/2.8m³/2~10℃ |
| Filters | 16bar/3.5m³ (3+1) |
Includes a cold dryer with 3–10°C dew point and multi-stage filters to ensure dry, clean compressed air.
Plug-and-play design reduces installation time and space requirements, ideal for workshops and factories.
Combines screw air compressor, air tank, cold dryer, filters, and automatic drainage in one compact unit.
