ACCU MINI | 1000-3000W | Fiber Laser Metal Sheet Cutting Machine

ACCU MINI | 1000-3000W | Fiber Laser Metal Sheet Cutting Machine

Formulario de solicitud de información sobre maquinaria


DESCRIPTIONS

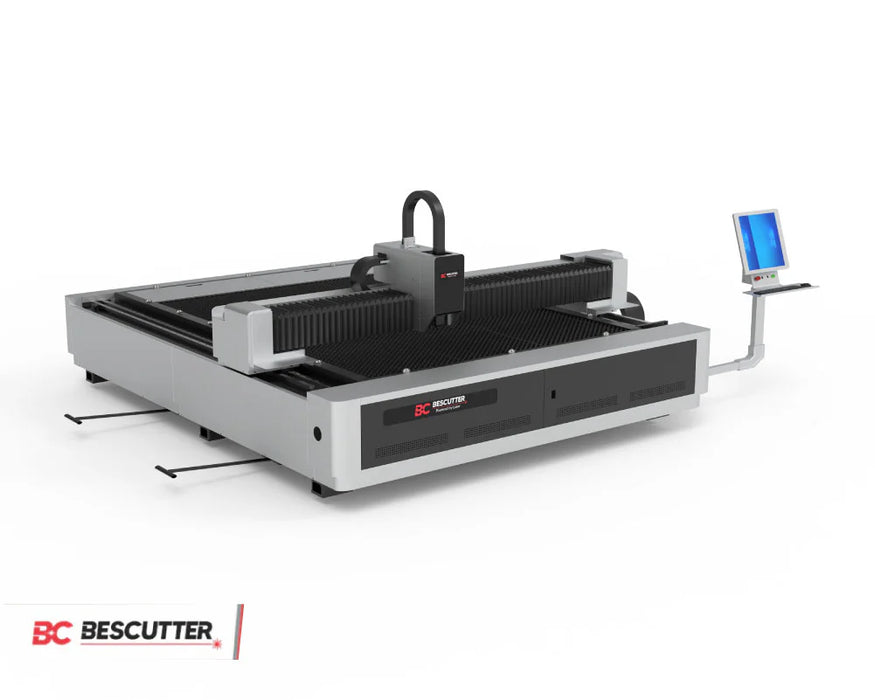

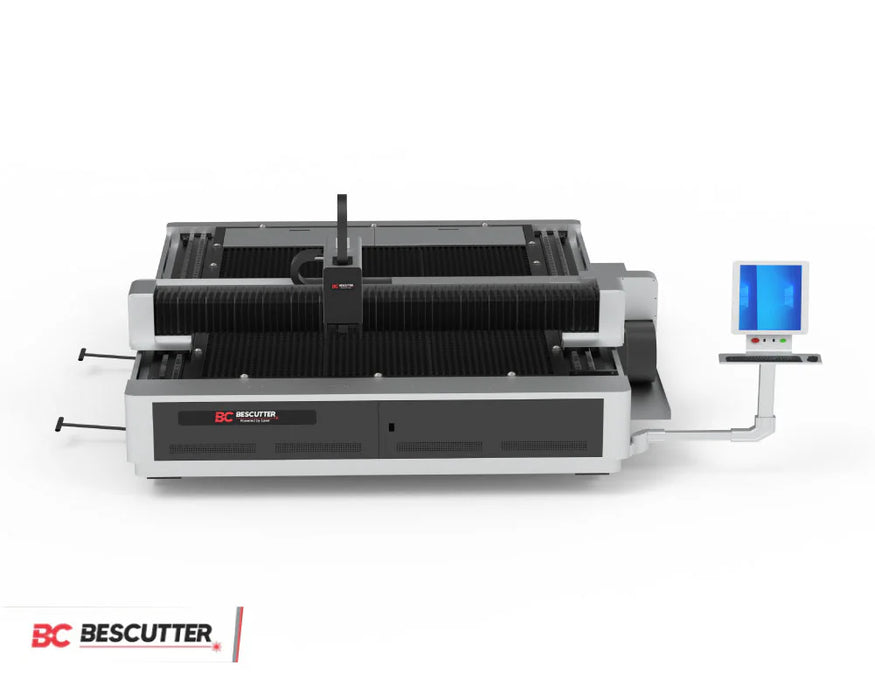

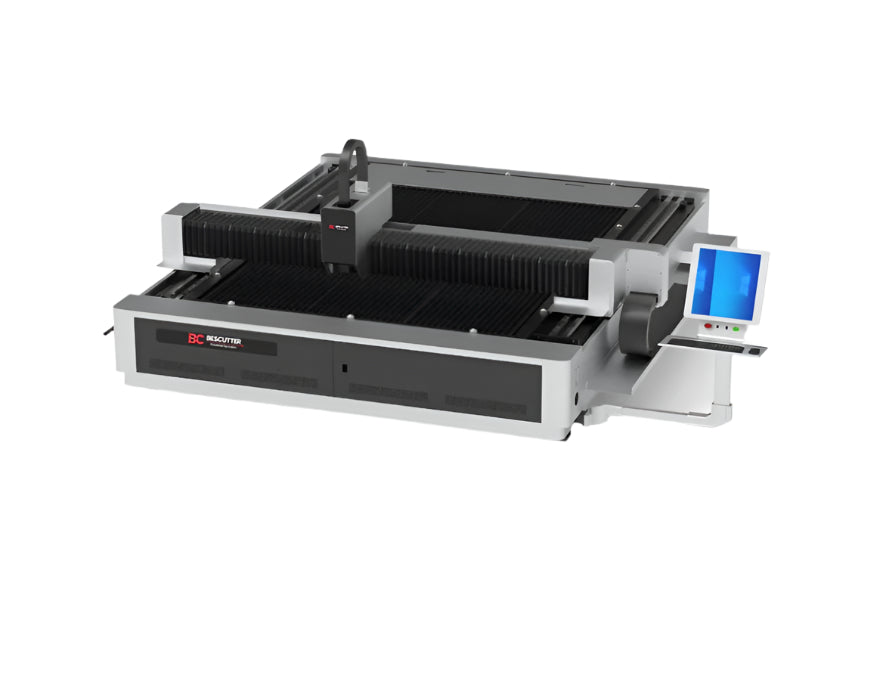

The Accu Mini Fiber Laser Cutting Machine by BesCutter is a compact, high-performance solution for precision metal cutting. Built with aviation-grade aluminum, a high-speed rack & pinion system, and CypCut software, it ensures efficiency and accuracy while maintaining a small footprint.

  • 1,000W – 3,000W Laser Power
  • Working Area: 1300mm x 1300mm (51” x 51”)
  • High-Rigidity Aluminum Bridge For Maximum Speed & Stability
  • Auto-Focus Laser Head by  Raytools
  • Ipad -Type Screen For Intuitive Operation

FEATURES

  • User-friendly control system with an iPad-type screen layout for intuitive operation.
  • Auto-focus Raytools laser head ensures consistent cut quality across different materials.
  • High-strength cast steel chassis combined with a precision aluminum bridge for durability and speed.
  • Efficient industrial water chiller to maintain optimal performance.
  • Energy-efficient fiber laser with industry-leading wall-plug efficiency (~30%), reducing power consumption.
  • Integrated automatic lubrication system for smoother machine operation.
Recursos

Recursos

Descarga la Ficha técnica y folleto ACCU MINI | 1000-3000W | Fiber Laser Metal Sheet Cutting Machine

CLICK PARA DESCARGAR

ESPECIFICACIONES TÉCNICAS

Technical Specifications Details
Working Area 1300mm X 1300mm (51” X 51”)
Laser Power From 1,000W to 3,000W
Laser Head Raytools
Software CypCut
Voltage 7.5KW
Power Supply Voltage 380V / 50Hz - 60Hz
Laser Generator MAX / Beam Force
Proportional Valve SMC / Airtac (Japan)
Electrical Components Schneider (France) Omron (Japan)
Chassis High strength cast steel
Bridge Aluminum
Water Chiller CWFL-1500
Guide Rail Smajic (Japan)
Zipper Leitesen (Germany)
Computer Ipad type
Extraction System 1.5KW

COMPONENTES

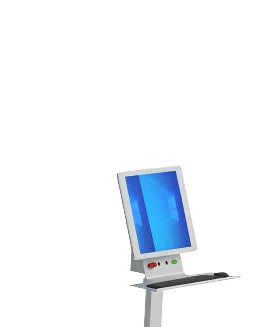

IPAD ACCU MINI | 1000-3000W | Fiber Laser Metal Sheet Cutting Machine
TOUCH SCREEN

Ipad type screen layout

AUTO FOCUS LASER HEAD

RAYTOOLS Laser Head

CYPCUT

Sheet Cutting Software

LASER SOURCE

Model BC Beamforce & Max Photonics

ESPECIFICACIONES

SOFTWARE

CypCut sheet cutting software is an in-depth design for fiber laser cutting industry.

LASER SOURCE

This model equips with BC Beamforce & MAX Photonics fiber laser source

WORK TABLE DIMENSIONS

ACCU MINI 1300mm x 1300mm (51” x 51”)

LASER POWER

1000W – 3000W
