DIE HEIGHT ADJUSMENT
For each Ton Model is: 110T: 90 // 160T: 100 // 200T: 110
NOMINAL PRESSURE
For each Ton Model is: 110T: 1100 // 160T: 1600 //200T: 2000
MOTOR POWER
For each Ton Model is: 110T: 11 // 160T: 15 // 200T: 18.5
DESCRIPTION:

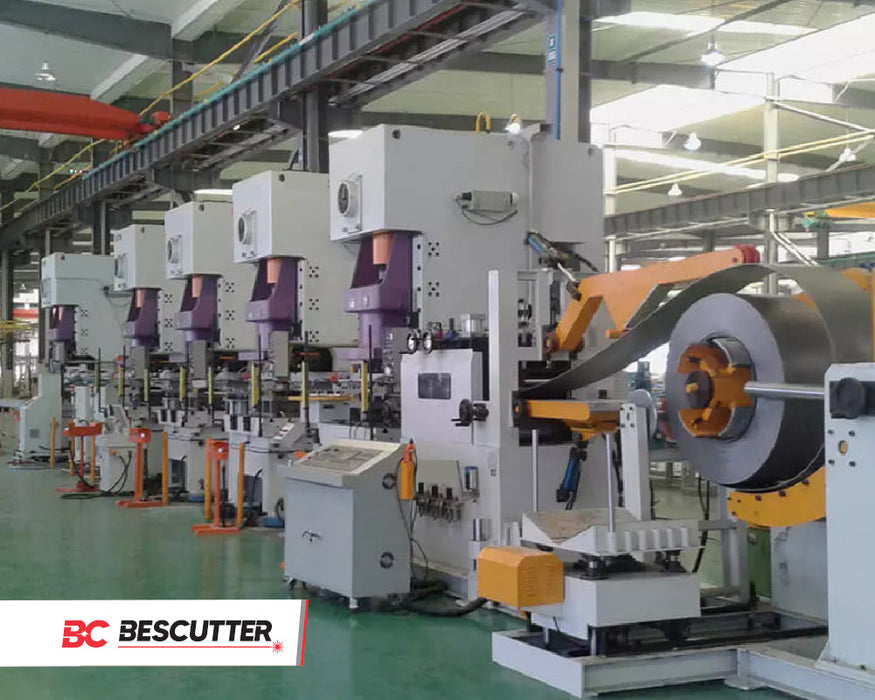

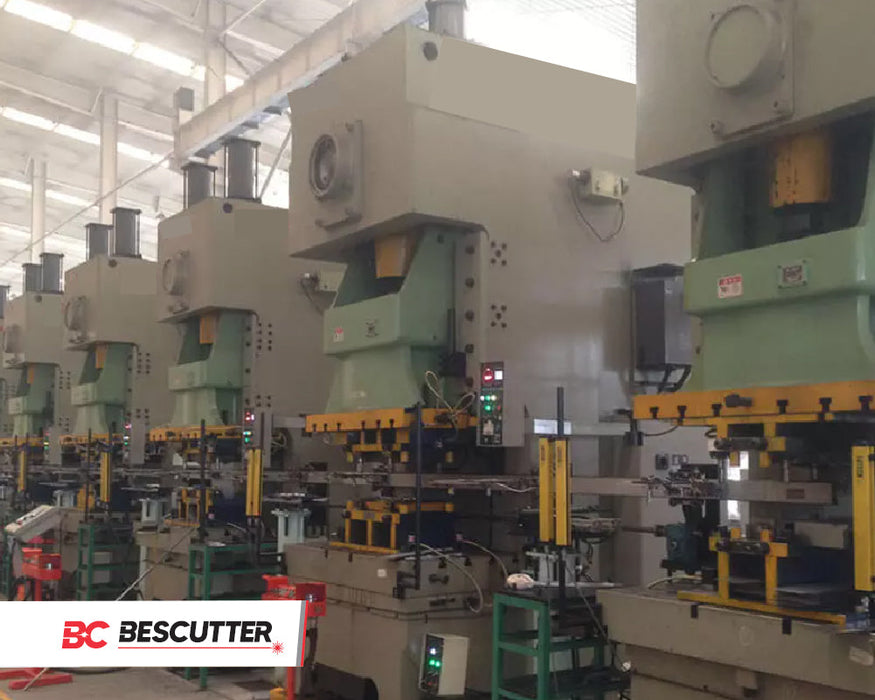

The Bescutter Frame Fixed Table Press is a robust, high-precision machine designed for various metalworking applications. It features a fixed table design that ensures stability during operations, offering consistent performance and high-quality results. Ideal for cutting, punching, and other forming processes, the press is known for its durability and efficiency. The sturdy frame construction minimizes vibrations, making it suitable for heavy-duty tasks in industries like automotive and aerospace.
FEATURES:
- High-rigidity steel-welded frame
- High-sensitive hydraulic overload protection
- Automatic oil cycle lubrication system
- Variants by weight 110 T ; 160 T ; 200 T
Tech specifications
| Nominal Pressure: | 1100 / 1600 / 2000 |
| Nominal Pressure Stroke: | 5 / 6 / 6 |
| Stroke of Slide: | 160-100 / 180-110 / 200-130 |
| Max.Die Set Height: | 350-380 / 400-435 / 450-485 |
| Die Height Adjustment: | 90 / 100 / 110 |
| Depth of Throat: | 350 / 390 / 420 |
| Distance Between Uprights: | 680 / 720 / 830 |
| Size of Opening in Table (Diameter): | Φ160 / Φ180 / Φ200 |
| Main Motor Power: | 11 / 15 / 18.5 |
