DESCRIPTION:

The 6-Axis Robot Welder is a versatile, high-precision solution equipped with laser power options (2000W–12000W) and advanced CCD monitoring for real-time process observation. It supports manual or automated operation, integrates seamlessly with production lines, and achieves welding speeds of 1.5–2m/min.

Powered by the Yaskawa GP-25 robot, it offers a 1730mm arm span, 25kg load capacity, and 0.06mm positioning accuracy, ensuring reliable performance for complex welding needs.

FEATURES

  • High-Precision Laser System: Power range of 2000W–12000W, with a welding penetration range of 0.2–4mm (1/127"–5/32" for 3KW), and a stable wavelength of 1070±10nm.

  • Advanced Welding Speed and Accuracy: Welding speed of 1.5–2m/min (59–79 in/min) with a repeated positioning accuracy of 0.06mm (0.2"), ensuring consistent and precise welding.

  • Sophisticated Weld Tracking System: Equipped with position-finding and real-time tracking functions using visual light to detect welds and adjust motion parameters dynamically.

  • Robust Design and Performance: Features the Yaskawa GP-25 robot with a 1730mm (68") arm span, 25kg (55 lbs) load capacity, and servo motor tracking by Quanta (Canada).

  • Flexible and Automated Operations: Six-axis linkages allow for complex trajectories and postures, enabling high-speed, reliable, and automated welding processes with a large welding range.

APPLICATIONS:

    • Construction and Architecture: Stair railings, elevator structures, and decorative metal elements.
    • Industrial Equipment Fabrication: Welding racks, machinery components, and ovens.
    • Home and Commercial Fixtures: Production of stainless steel doors, window guardrails, and household appliances.
    • Automotive Industry: Body panel welding, exhaust systems, and intricate automotive parts.
    • Aerospace Applications: Structural components requiring consistent and high-quality welds.



Recursos

Recursos

Descarga la Ficha técnica y folleto Robot Handheld Welding 2000W-12000W | Fiber Laser Welding Machine

CLICK PARA DESCARGAR

ESPECIFICACIONES TÉCNICAS


ITEM 2000W 3000W 6000W 12000W
LASER WORKING MEDIUM Rare earth doped fiber Rare earth doped fiber Rare earth doped fiber Rare earth doped fiber
WAVELENGTH 1070±10nm 1070±10nm 1070±10nm 1070±10nm
OPTICAL FIBER OUTPUT QUANTITY 1 Way 1 Way 1 Way 1 Way
WELDING DEPTH 0.2-3mm 0.2-4mm 0.2-6mm 0.2-12mm
LASER POWER 6KW 9KW 18KW 36KW
POWER INPUT 220V 380V 380V 380V
COOLING MODE Water-Cooling Water-Cooling Water-Cooling Water-Cooling
OPTICAL FIBER TYPE QBH QBH QBH QD
FIBER LENGTH 10/15m 10/15m 15m 15m
FIBER DIAMETER 50um 50um 50/75um 100um

COMPONENTES

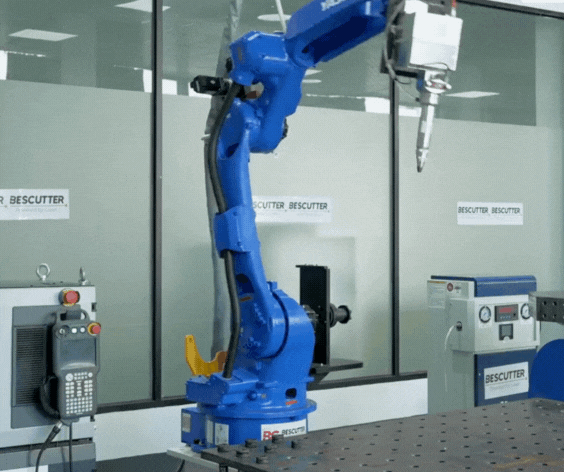

Robotic Arm

Automated welding arm with multi-axis movement for precision and efficiency.

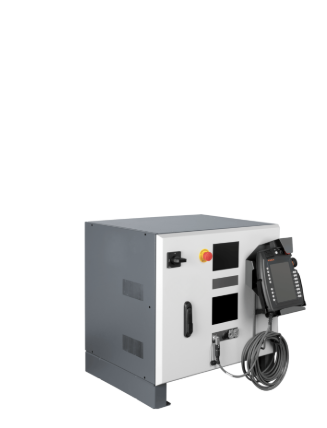

Laser Welding Source

High-power laser generator ensures deep and strong welds on metals.

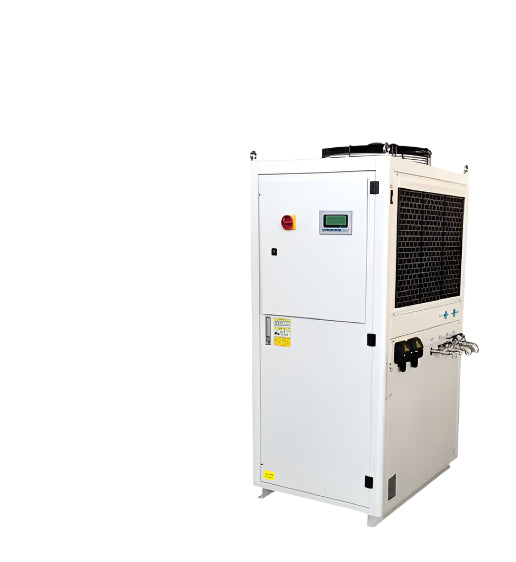

Cooling System

Maintains optimal temperature, preventing overheating during welding

ESPECIFICACIONES

LASER POWER

2000W model: 6KW // 3000W model: 9KW // 6000W model: 18KW // 12000W model: 36KW

MAXIMUM LASER POWER

2000W model: 2000W // 3000W model: 3000W // 6000W model: 6000W // 12000W model: 12000W

POWER INPUT

2000W model: 220V // 3000W, 6000W, and 12000W models: 380V
