POWER SUPPLY
AC 380V (±10%) 50/60 Hz
MACHINE SIZE
334" x 70" x 70" (8500 X 1800 X 1800 mm)
TUBE DIAMETER
6 - 115 (Workpiece circumcircle)
LASER POWER
1500W /2000W
DESCRIPTION

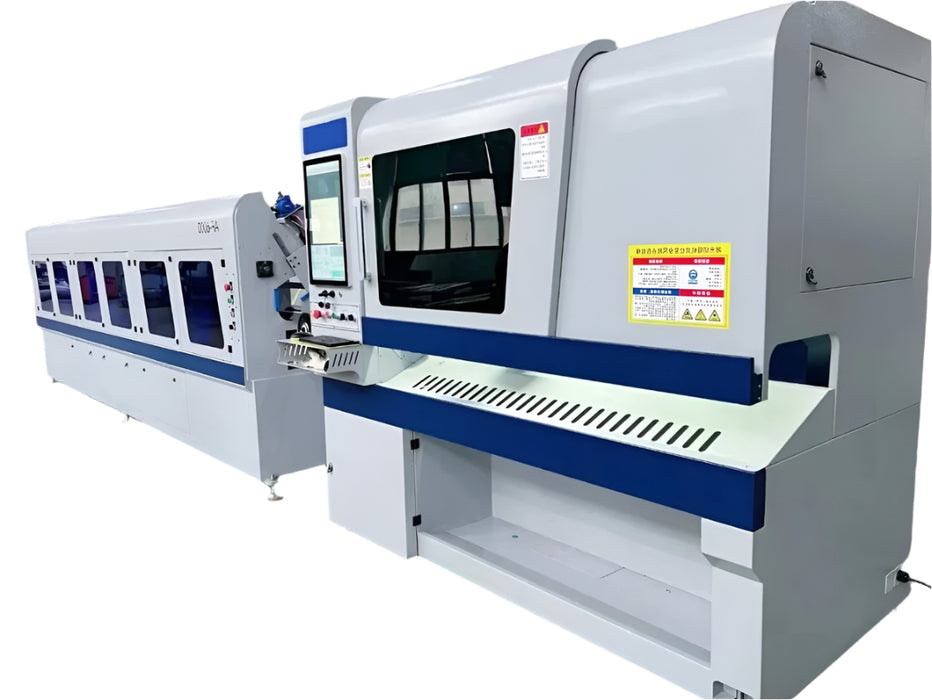

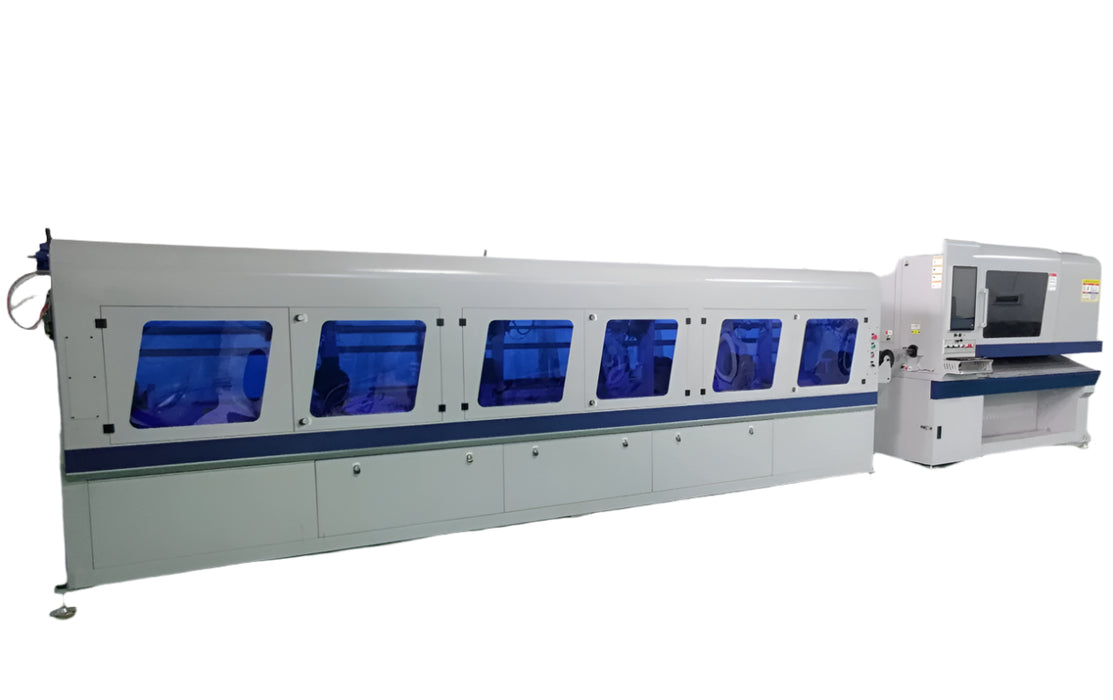

The Tube Ninja by Bescutter is a fiber laser tube cutting machine designed for precision cutting of tubes with diameters up to 4 inches. It features a semi-automatic system tailored for small to medium-sized pipes, offering rapid acceleration and high-speed cutting while maintaining accuracy. The intelligent loading and unloading system facilitates automatic feeding, cutting, and unloading processes, reducing labor costs and enhancing efficiency
FEATURES
- The semi-automatic laser pipe cutting machine is specially tailored for small and medium-sized pipes. It has fast acceleration and high-speed cutting while ensuring cutting accuracy.
- The high-intelligence loading and unloading system can meet the automatic feeding, automatic cutting, and automatic unloading processes.
- Solve the problem of recruitment difficulties for enterprises and reduce labor costs.
Resources
Download TUBE NINJA | Fiber Laser Tube Cutting Machine With Automation Brochure and Tech Sheet
Tech specifications
| Specification | Details |
|---|---|
| Laser Power | 1500W / 2000W |
| Tube Diameter | 6 – 115 (Workpiece circumcircle) |
| Complete Consumption | 19KW |
| XYZ AXIS Position Accuracy | ≤ ±0.05mm |
| XYZ AXIS Repeat Position Accuracy | ≤ ±0.02mm |
| Min Cutting Kerf | 0.15mm |
| Acceleration | 1.8G |
| Max RPM | 160 |
| Machine Weight | 2T |
| Machine Size | 334" x 70" x 70" (8500 x 1800 x 1800 mm) |
| Power Supply | AC 380V (±10%) 50/60 Hz |

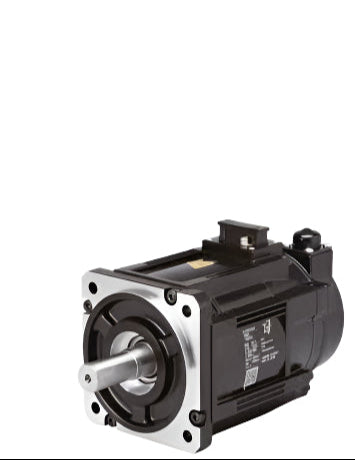

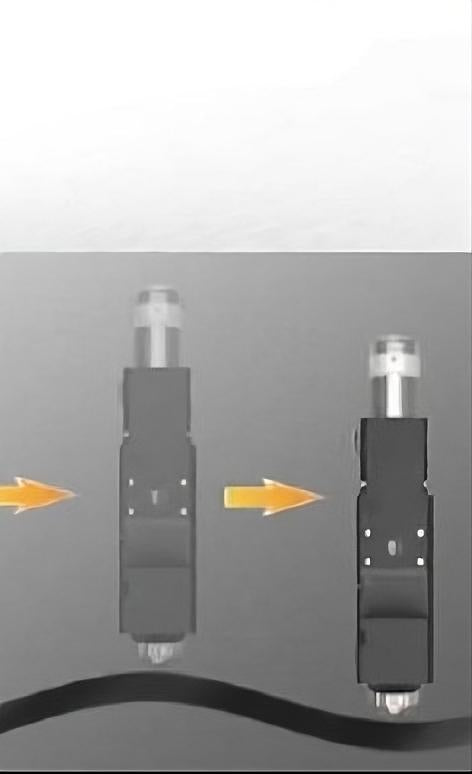

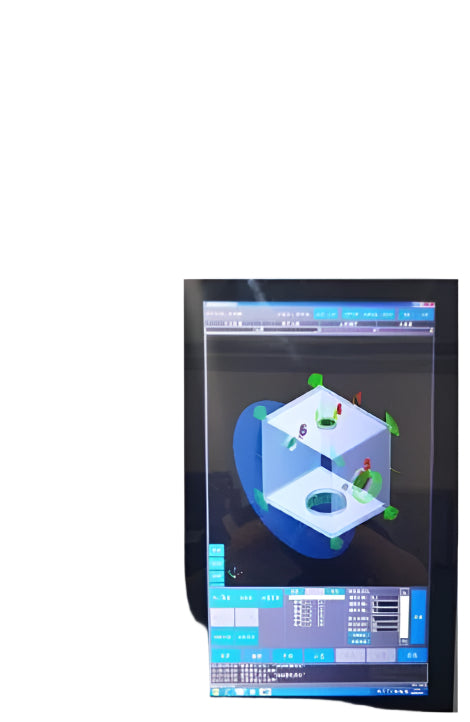

Key Components
