SYSTEM
The machine is equipped with a Ruida RDC645G control system
LASER POWER
300W
CUTTING SIZE
The cutting area is 1525 mm x 3040 mm (5 ft x 9.97 ft)
DESCRIPTION

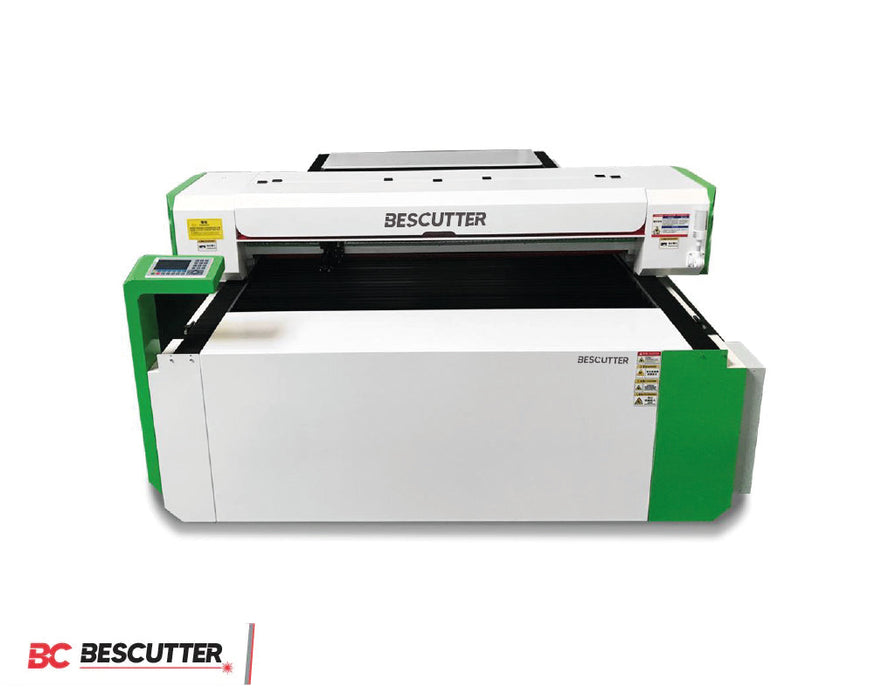

The BESCUTTER Workforce X Series 1325-1530 is a high-performance CO2 laser cutter system, available with a powerful 300W glass laser tube. It is designed for precision cutting and engraving across a wide range of materials like wood, acrylic, leather, and more. Key features include a large working area, water chiller for efficient cooling, and a user-friendly control panel. This system offers excellent speed, accuracy, and reliability for industrial and commercial use, with a robust exhaust fan and connection options via USB or Ethernet cable. Ideal for heavy-duty applications.
COMPONENTS
- Workforce X Series Laser Unit
- 300W CO2 Glass Laser Tube
- AC 220V (+10%) 60Hz
- Water Chiller CW6000
- Control Panel
- Exhaust Fan 1HP (750W)
- USB Cable / Ethernet Cable
Resources
Download ALL SYSTEM INCLUDED BESCUTTER WORKFORCE X SERIES 1325-1530 | 300W | CO2 LASER CUTTER SYSTEM Brochure and Tech Sheet
Tech specifications
| Model Number: | WXS300W-CO2 |
| Cutting Area: | 98.42" x 51.18" (1,300 mm x 2,500 mm) / 59.06" x 118.11" (1,500 mm x 3,000 mm) |
| Laser Generator: | 300W CO2 Glass Laser Tube (ECL300) |

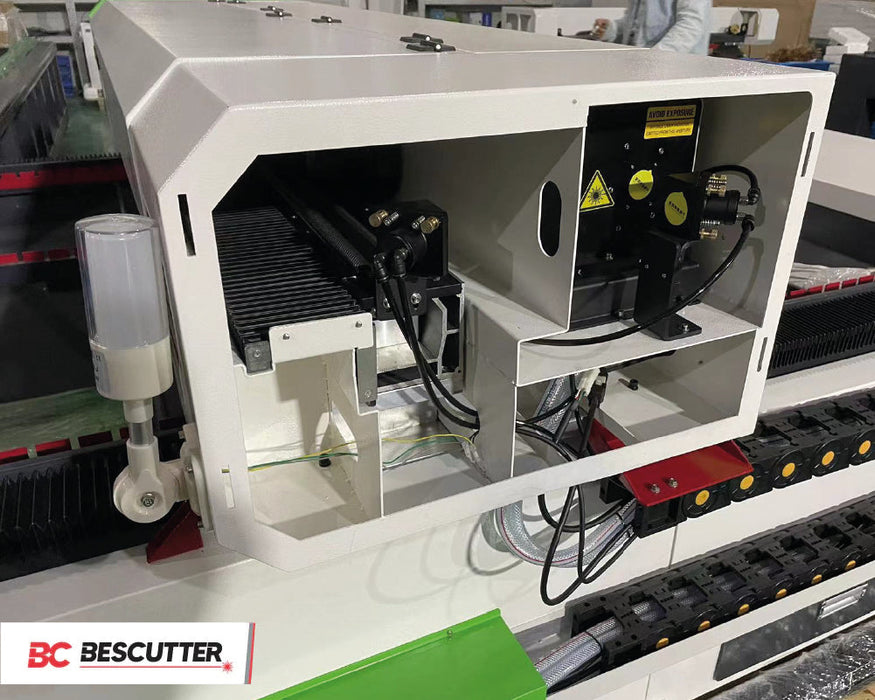

| Laser Head: | Multi Focus Laser Head |
| Control System: | Ruida RDC6445G |
| Water Chiller: | S&A CW6000 |
| XYZ Servo Motors: | YAKOTEC, Y 2X750W, X 1X400W |
| High Quality X, Y Rack and pinion, Guide Rails: | PMI(Taiwan) |
| Ball Screw in X axis: | TBI(Taiwan) |
| Peumatic Control: | SMC |
| Electrical Element: | SMC Electric |
| Weight: | 2432 lbs / 2650 lbs |
| X/Y Axis Positioning Accuracy: | <=0.05 mm/m |
| X/Y Axis Repeated Positioning Accuracy: | <=0.05mm |
| Traverse Speed: |
1600 inch/min |
Key Components
