Q Series Galvo Fiber Laser Marker 20W-100W - Desktop Enclosed Type - BesCutter Laser Cutters and Engravers

Description

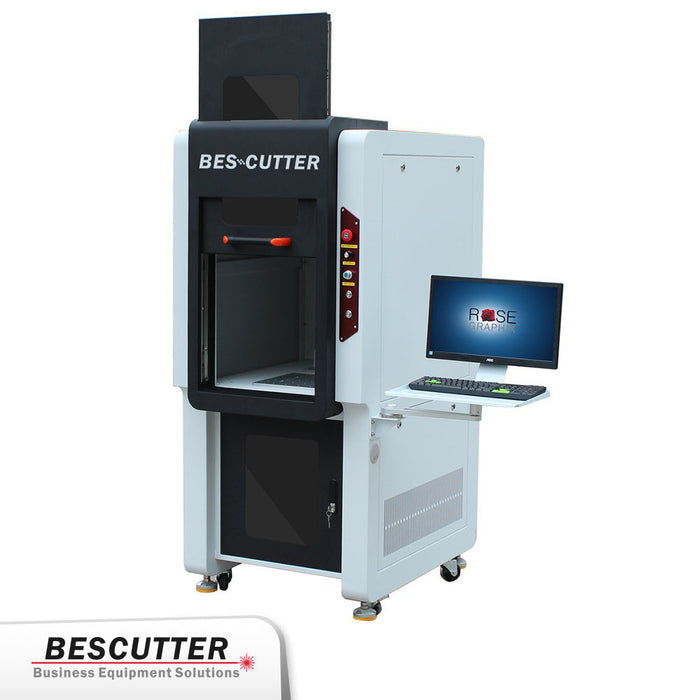

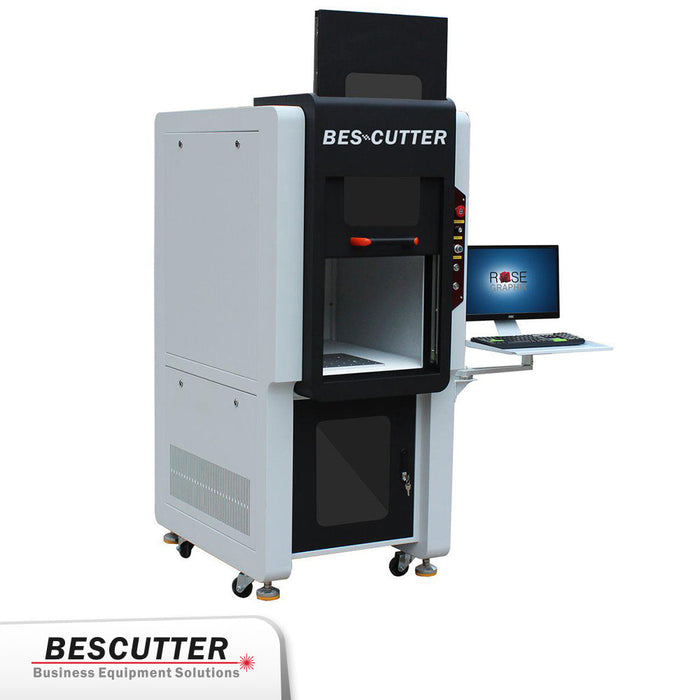

The Q Series Galvo Fiber Laser Marker with Enclosure is a high-precision marking system designed for efficiency and safety. Its enclosed design ensures user protection, while the advanced galvo technology enables rapid and accurate marking on various materials. Ideal for industrial applications, it offers a range of power options to suit different marking needs.

Main Features

    • Full Protection from Fiber laser. Laser protective window glass.
    • High Precision and Unparalleled speed
    • Engraving Applications: all metals and some type of non-metal materials
    • Desktop computer included
    • Two Red Dots for easy focal length adjustment
    • Visible Red Laser for alignment and preview
    • Motorized up/down adjustable Z-axis
    • FREE operating software: EZCAD  (Compatible with CorelDraw, AI, AutoCAD and Photoshop.)
    • FREE one pair of laser protection goggles
    • No moving parts, no consumables, maintenance free
    • Two years warranty on all parts and remote service

UPGRADE OPTIONAL

  • Extra Fielding Scanning Lens (Singapore Brand)
  • R-80 Rotary Attachment (for tumbler cup engraving)
  • R-50 Rotary Attachment (for ring engraving)
  • JPT MOPA Laser Resonator (Singapore Brand)
  • 2D Scanlab Galvanometer Laser Head Scanner (German Brand)
  • 3D Axis Galvanometer Laser Head Scanner (Chinese Brand)
Resources

Resources

Download Q SERIES GALVO FULL ENCLOSURE FIBER LASER MARKING ENGRAVING MACHINE FOR ALL METALS / SOME PLASTICS AND TILE 30W-100W - OPTIONAL 3D LASER HEAD Brochure and Tech Sheet

Click to Download

Tech specifications

Laser Generator:  20W / 30W / 60W / 100W
Laser Source Life Time: 100,000 + Horus
Standard Working Area: 4.3" x 4.3" (110x110mm) / 5.9" x 5.9" (150x150mm) / 6.9" x 6.9" (175x175mm) /  7.8" x 7.8"(200x200mm) / 11.8" x 11.8" (300x300mm)
Galvanometer Scanner: Sino-Galvo
F-θ Lens: Wavelength (Singapore Brand)
Marking Speed: Up to 7000 mm/s
Laser Wavelength: 1.06 um
Beam divergence:
0.3 mrad
Focused beam diameter: <=20 um
Min. line width: 0.015 mm
Min letter size: 0.1 mm
Marking depth: 0.03-2 mm
Power Supply: 110 V / 60 Hz
Cooling: Air-cooled, no extra cooling needed
Machine Dimensions: 49"L x 34"W x 75"H
Net Weight: 750 lbs

Key Components

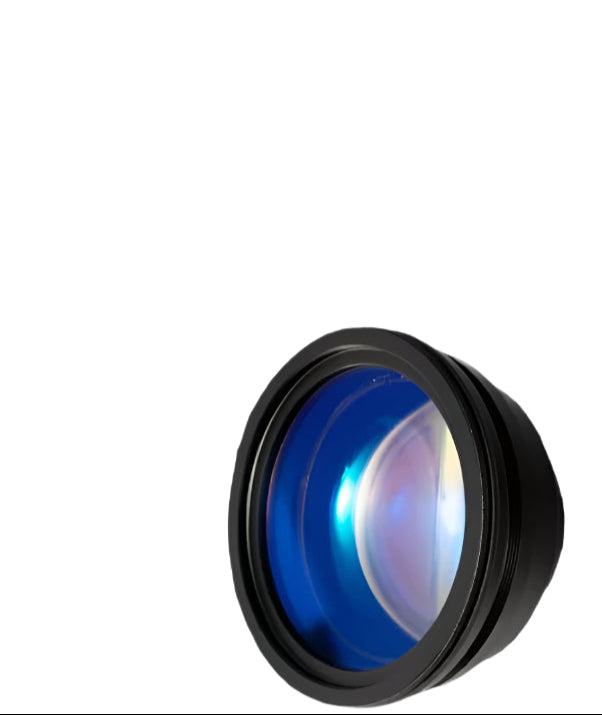

F-THETA LENS

Ensures uniform laser focus for precise marking.

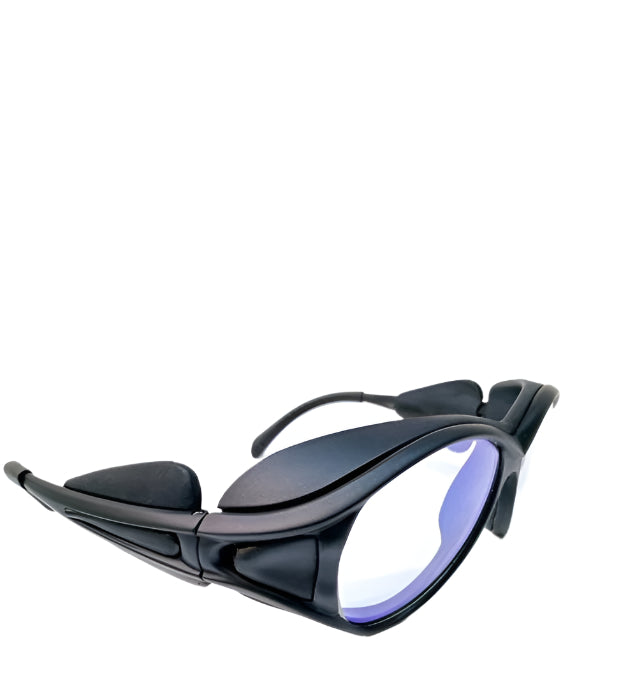

SAFETY GLASSES

Specialized laser safety glasses to protect the user’s eyes from harmful laser exposure are included

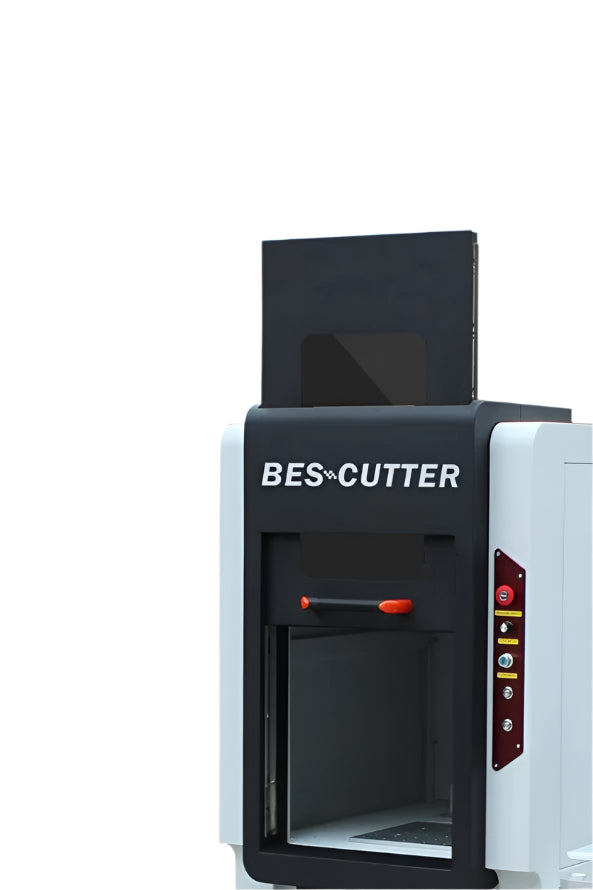

LASER PROTECTIVE GLASS

Equipped with a safety door to ensure user protection and prevent laser exposure.

DESKPOT SITE

automating the material handling process.

SPECIFICATIONS

MATERIALS POSSIBLE TO ENGRAVE

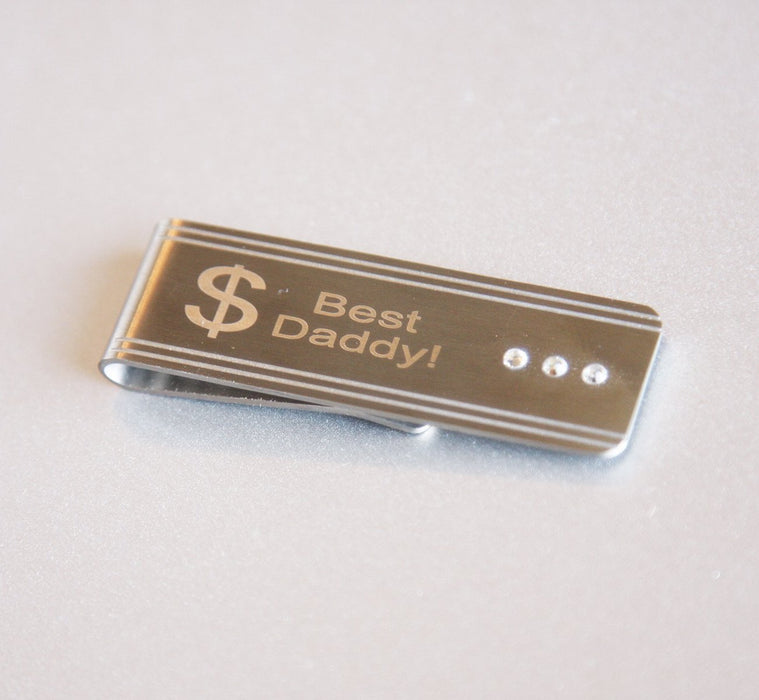

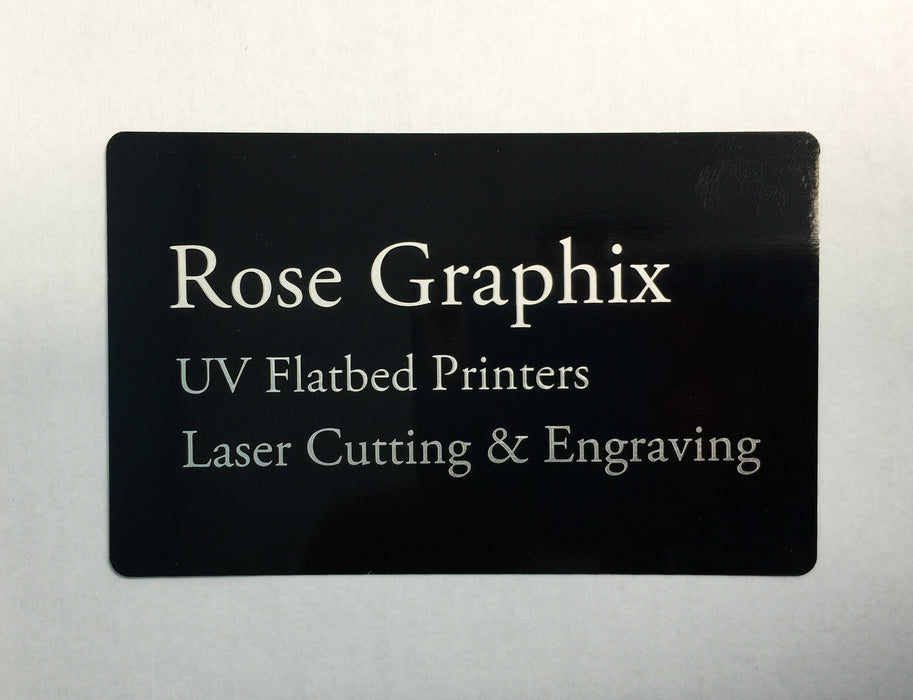

This laser marker is designed for high-precision marking on metals (stainless steel, aluminum, brass, etc.), plastics, and some coated surfaces, making it ideal for industrial applications.

POWER OPTIONS

The Q Series Galvo Fiber Laser Marker comes in power options ranging from 20W to 100W, allowing users to choose the best configuration for their marking needs.

DESIGN

The enclosed design protects users from laser exposure, reduces dust and fumes, and enhances overall operational safety in industrial environments.

COMPATIBLE SOFTWARE

The system is compatible with EZCAD software, allowing for precise control and customization of engraving projects.
