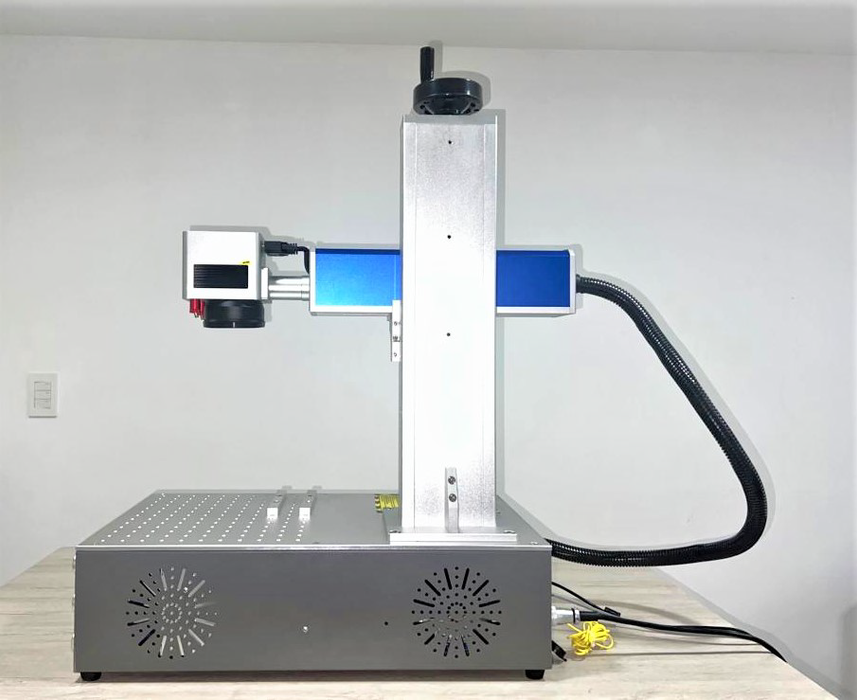

Compact Galvo

Compact Galvo

Machinery Information Request Form

Solicita tu cotización

DESCRIPTION

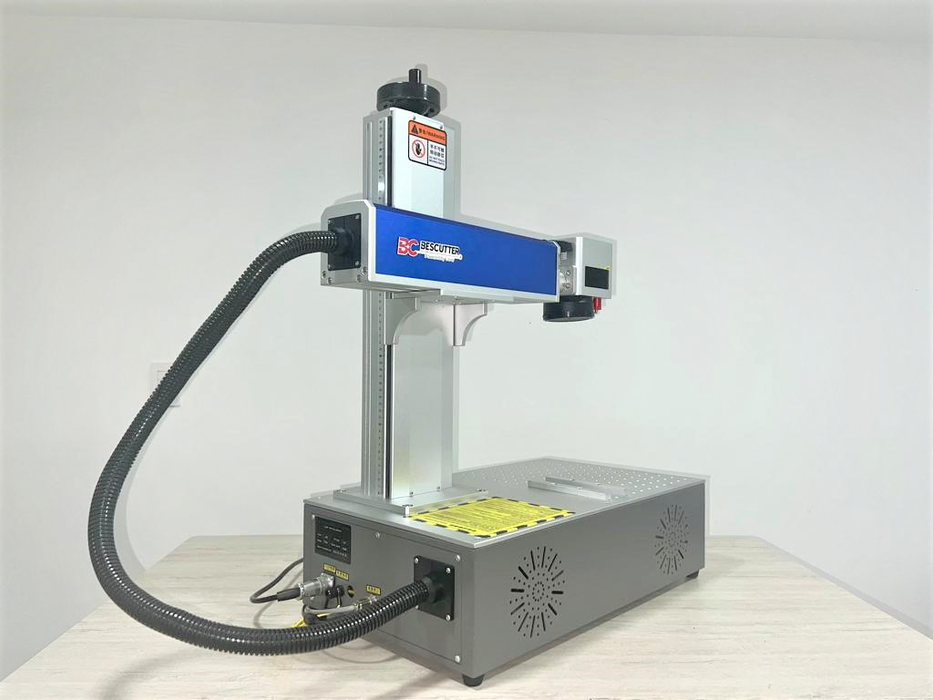

The GALVO COMPACT  is a compact system, which means which takes up less space compared to some other engraving machines laser. This is ideal in environments where space is limited.
It is compatible with a wide variety of materials, including metals (such as stainless steel, aluminum, copper), plastics, ceramics, woods, leathers and more.

COMPONENTS

  • Laser Generator
  • 300x300 (12"x12") & 110x110 (4"x4") lens
  • Integrated cable: (Fiber optic cable, DB25 connector and Interface Signal).
  • Working platform.
  • Calibration crank.
  • Leveling rule
  • Emergency stop/Key switch/Laser switch
  • Max Photonics Generator

Optional Upgrade: 30W MOPA Laser Source

Enhance your machine’s versatility with the 30W MOPA Laser Source, offering greater control over pulse duration for high-contrast marking on metals, precise color engraving on stainless steel, and improved performance on delicate materials. Ideal for advanced engraving and customization applications.




RECURSOS

RECURSOS

Descarga la ficha técnica y folleto Compact Galvo

CLICK PARA DESCARGAR

ESPECIFICACIONES TÉCNICAS

ESPECIFICACIONES TÉCNICAS
Potencia Láser: De 30W Hasta 50W
Generador Láser: MAX Photonics
Lente Láser: F-theta
Voltaje: 110V / 60HZ / 1-PH
Área de Grabado Opcionales: 11mm x 11mm / 15mm x 15mm / 20mm x 20mm / 30mm x 30mm
Modo de Enfriamiento: Refrigeración por Aire: Incorporado
Temperatura del entorno de operación: 15°C - 35°C / Humedad 30% - 85%
Controlador (Software): Ezcad 2
Potencia de Salida del Láser: 10% – 100% Continuamente
Frecuencia de Salida del Láser: 20 khz – 100 khz Continuamente
Sistemas operativos compatibles: Windows XP / Windows 7 / WIN 8 / Win10 32-64bits

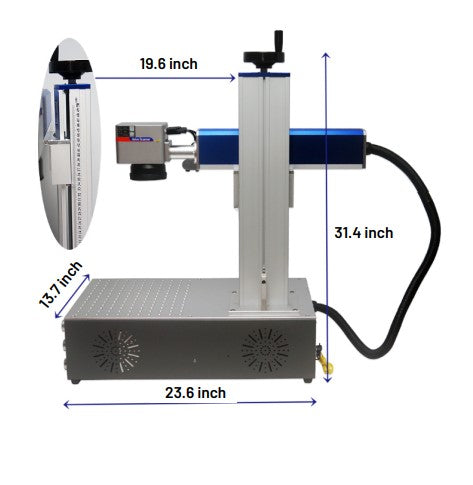

Dimensiones de Embalaje: 755 x 595 x 365 mm (30” x 23” x 14”)
Peso Neto: 27Kg (59 lb)

COMPONENTES PRINCIPALES

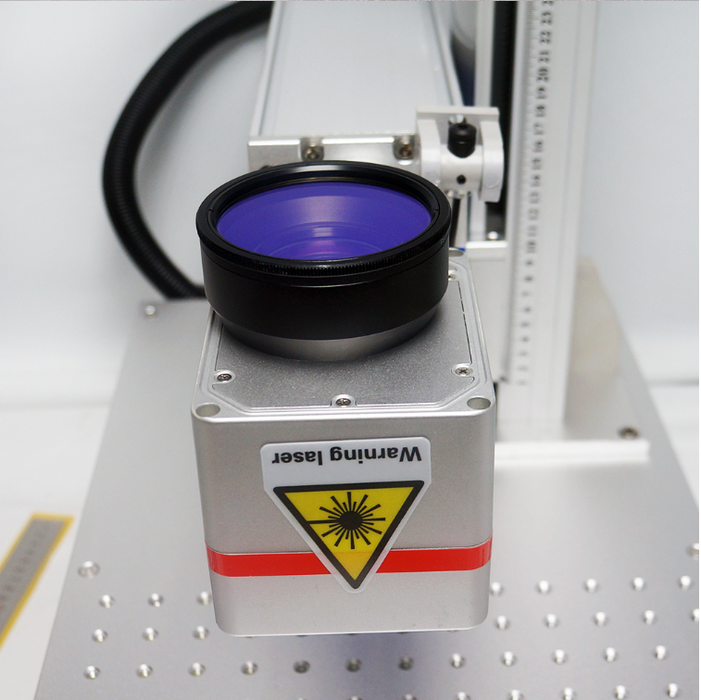

F-Theta lens

Ensures uniform laser focus for precise marking.

MAX generator

Long-life transformer with a 100,000-hour lifespan.

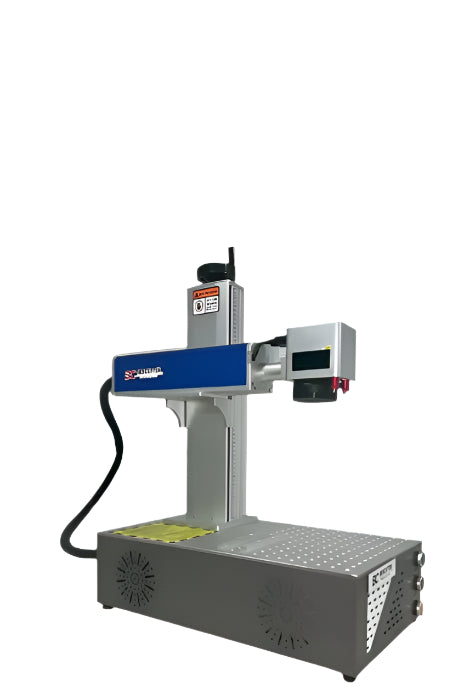

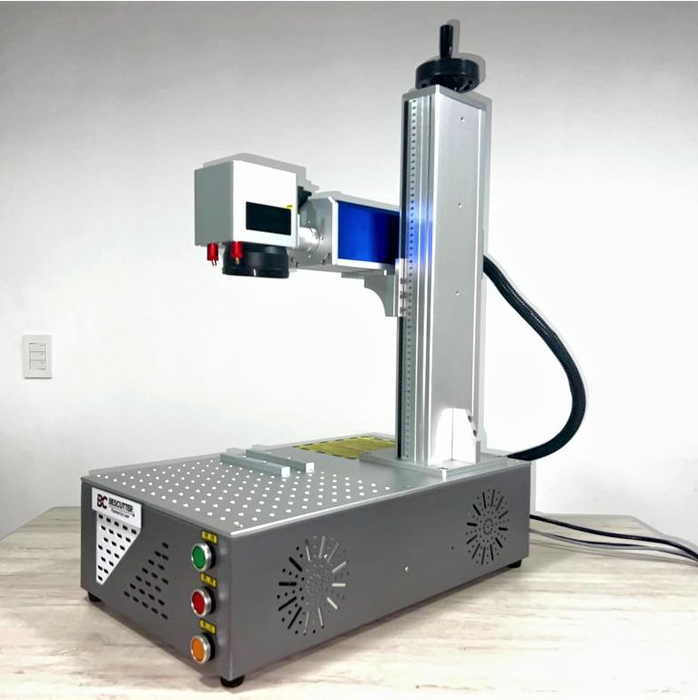

Compact design

Delivers precision and speed in a space-saving design.

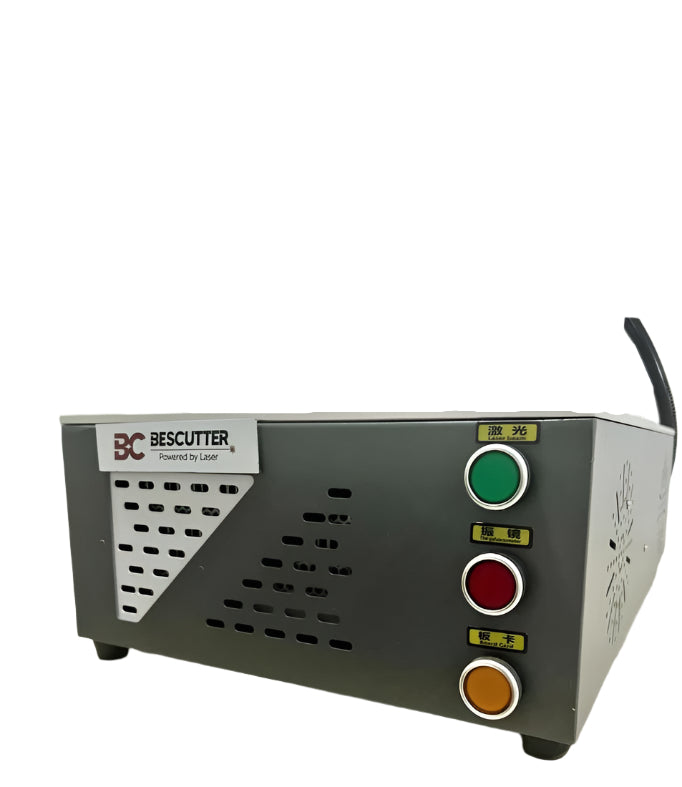

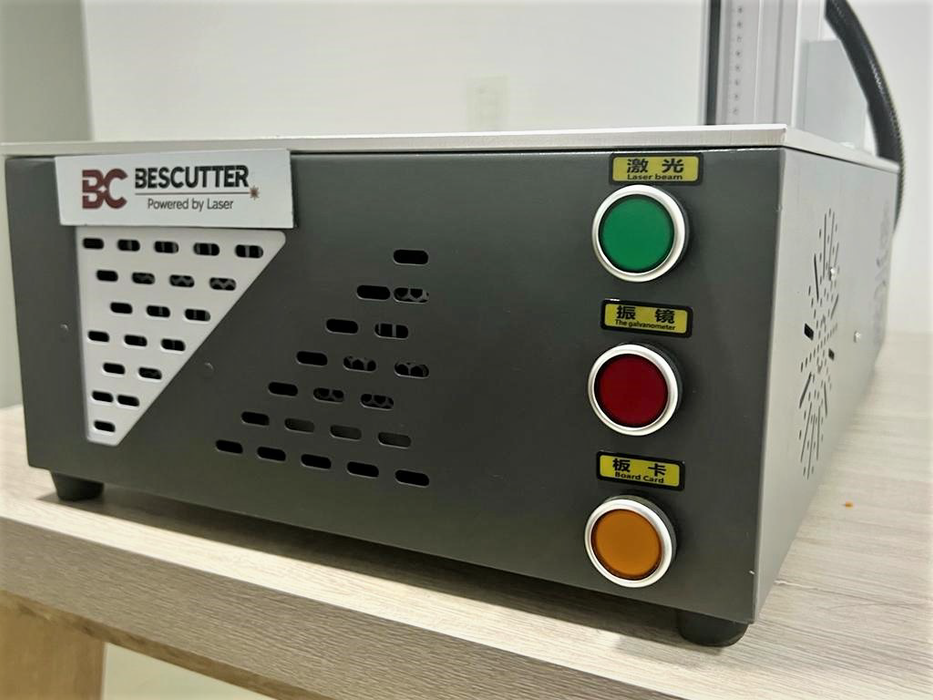

Quick control

Easily access the emergency stop, key switch, and laser switch

ESPECIFICACIONES

MATERIALS TO ENGRAVE

The machine is designed for high-precision engraving on various materials, including metals (stainless steel, aluminum, brass, etc.), plastics, and some coated surfaces.

PORTABILITY

With a compact size and a net weight of just 27 kg (59 lbs), the machine is easy to transport and set up, making it ideal for on-site or flexible operations.

LIFESPAN

The fiber laser module has an lifespan of up to 100,000 hours, ensuring durability and long-term reliability.

LASER POWER OPTIONS

30W & 50W
