SOFTWARE
CypCut sheet cutting software is an in-depth design for fiber laser cutting industry.
LASER SOURCE
This model equips with Han's & MAX Photonics fiber laser source
WORK TABLE DIMENSIONS
ACCU CORE 3015
LASER POWER
1500W – 3000W
DESCRIPTIONS

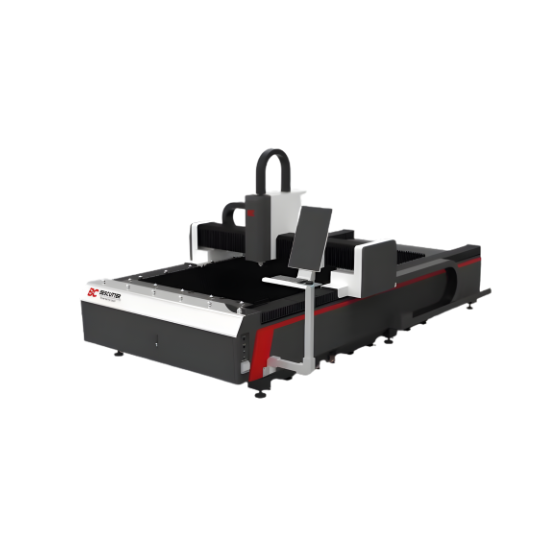

The Accu Core Fiber Laser Cutting Machine by BesCutter is a professional solution for metal sheet cutting, suitable for applications in aerospace, electronics, appliances, elevators, automotive, and precision parts manufacturing. It features a gantry double-drive structure with a double servo motor transmission, providing high-speed cutting with high precision and stability.
FEATURES
- High-speed and precision cutting with a gantry double-drive system.
- Laser power options: 1500W–3000W for various cutting needs.

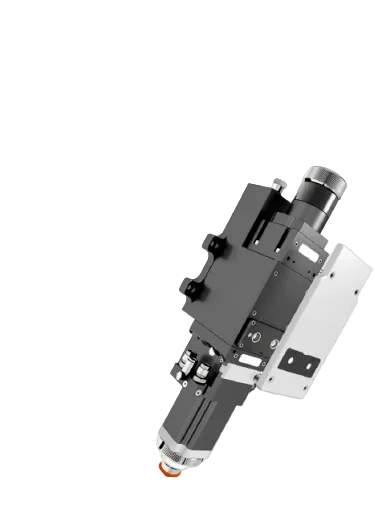

- Auto-focus cutting head (Raytools BM110) for efficiency.
- Stable and rigid structure to minimize vibrations.
- EtherCAT control system for high stability and anti-interference performance.
Resources
Download the technical data sheet and brochure ACCU CORE | 1500-3000W | Fiber Laser Metal Sheet Cutting Machine
ESPECIFICACIONES TÉCNICAS
| Parameter | NEAT3015-E |
|---|---|
| Working area | 1300mm x 1300mm (51” x 51”) |
| Laser power | 1500W ~ 3000W |
| Drivetrain system | Gantry double rack and pinion Double servo motor |
| Camera | No |
| The Max. speed | 90m/min |
| The Max. acceleration | 0.8G |
| Positioning accuracy | ±0.05mm/1000mm |
| Repeat positioning accuracy | ±0.03mm/1000mm |
| Graphic format | DXF, LXD, PLT, AI, NC, etc. |
| Working Environment | 0-45°C, Humidity ≤ 80%, No freezing |
| Power consumption | 5KW (Laser source and chiller are not included) |
| Power supply | 3 phase 380V | 50Hz/60Hz |
| Gross weight | 1200Kg |
| Dimension | 4310mm × 2200mm × 1400mm |
COMPONENTS
