ALL SYSTEM INCLUDED BESCUTTER VERSA STAR 52"X36" 150W CO2 LASER CUTTER & ENGRAVER | FAST DELIVERY | LEADSHINE STEPMOTORS

DESCRIPTION

The BESCUTTER Versa Star 52" x 36" 150W CO2 Laser Cutter & Engraver is a high-performance, versatile laser system designed for both cutting and engraving various materials such as acrylic, wood, leather, and more. Equipped with a 150W CO2 laser tube and Leadshine stepper motors, it delivers precise and efficient results. This system features a spacious 52" x 36" working area, making it ideal for large projects. It also offers fast delivery and is equipped with advanced cooling and ventilation systems for continuous operation.

KEY FEATURES

  • Laser Power: 150W CO2 Laser Tube
  • Working Area: 52" x 36" (1,320 mm x 920 mm)
  • Motors: Leadshine Stepper Motors for precise movement
  • Fast Delivery: Quick shipping for timely installation
  • Materials: Suitable for cutting and engraving wood, acrylic, leather, and more
  • Control System: User-friendly interface with advanced features
  • Cooling: Water cooling system for optimal performance during extended use
  • Exhaust: Integrated exhaust system for safe operation
Resources

Resources

Download ALL SYSTEM INCLUDED BESCUTTER VERSA STAR 52"X36" 150W CO2 LASER CUTTER & ENGRAVER | FAST DELIVERY | LEADSHINE STEPMOTORS Brochure and Tech Sheet

Click to Download

Tech specifications

Laser Power: 150W
Laser Tube Type: ECO2,  GSI Advance Technology, JK LASER® CO2 laser tube, 10.6 µm wavelength (ECO2) Lifetime: 10,000 hours Approx
Power Supply: AC 110V (±10%) 60HZ
Focus Lens: 2.5" Focal Lens
Working Area: 52" x 36" (1300 x 900 mm)
Working Platform: Knife-blade / Multi-Purpose
Z-Axis Displacement: ±8in (±200 mm)
Max Moving Speed: 18 in/s (500 mm/s)
Pass-Through Door: Pass-Through 1 1/2in x  52in for 4x8 Sheet Materials
Transmission: Belt/ Stepper motor LeadShine
Operation Mode: Control Panel RuiDa Controller RDC6445G (EC) / SmartCarve
Machine Dimensions: 75" x 64" x 45" (1900 x 1625 x 1143 mm)
Net Weight:  1250 lb (498 kg)
Gross Weight: 1400 lb (589 kg)
Package Dimensions: 81" x 70" x 50" (2057mm x 1778mm x 1270mm)



MACHINE CONFIGURATION:

Controlling System: RuiDa Controller RDC6445G (EC)
Software: RDWorks / Compatible LightBurn® / SmartCarve
Connection Method: USB cable / Ethernet cable
Software Compatibility: Photoshop, Illustrator, CorelDraw, and AutoCAD
Technical Support Service: Dedicated USA technical support Zoho desk platform
Limited Warranty: 2 Years on the machine body, auxiliary equipment, hardware, and software. / 1 Year on the laser tube. / Lenses and mirrors are not covered by warranty
Certification: CE, ISO
Class: Class 4 Laser
Optional Upgrades: CCD Camera (Contour cut with registration mark)
Four-wheel rim drives rotary attachment.


AUXILIARY EQUIPMENT INCLUDED:

Extraction System: Exhaust Fan 1HP / 750W
Air Assistant: Air Compressor Hailea 110V
Water Chiller: S&A CW 5200 Industrial Refrigerated Chiller



Key Components

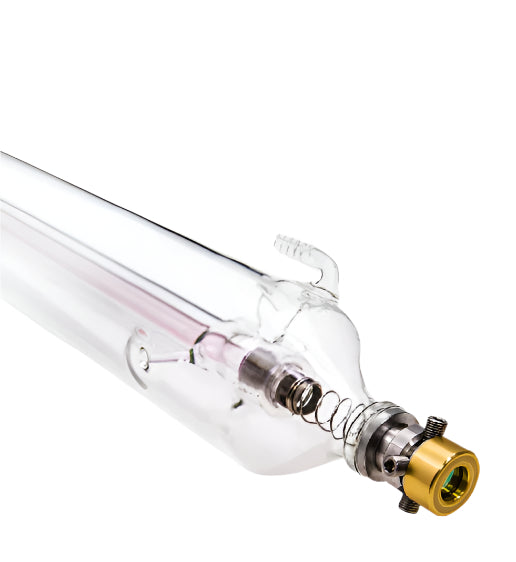

E-CO2 Laser tube

High power, precision and durability for seamless laser cutting and engraving.

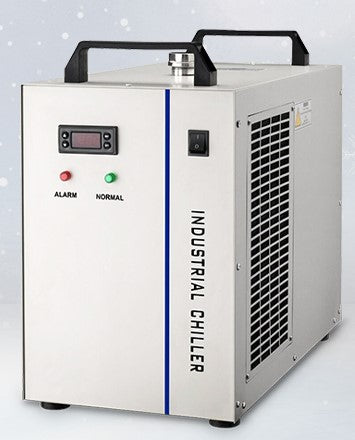

Industrial water chiller

Efficient cooling for maximum performance and reliability in industrial applications.

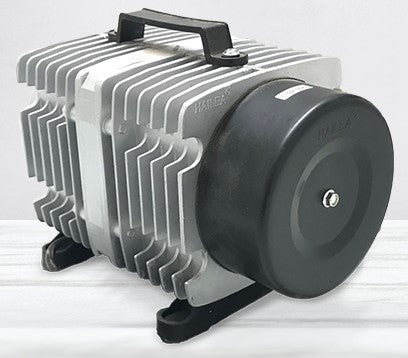

Assistant air

Generate airflow needed to expel smoke and pollutants, keeping the optical lens cool and clean.

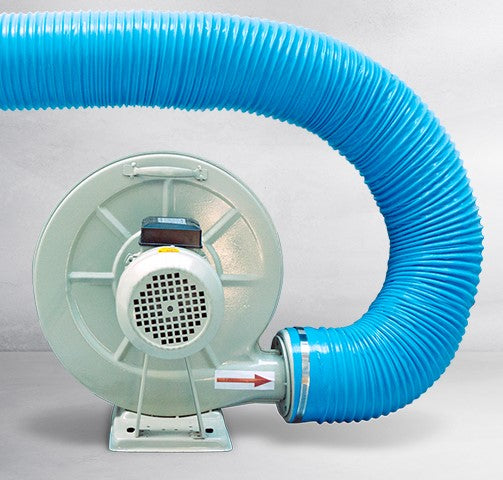

Extraction system

Extract all the fume and pollution caused by laser cutting.

SPECIFICATIONS

What materials can the Versa STAR CO2 Laser System cut and engrave?

The Versa STAR can process various materials, including paper, cloth, acrylic, leather, wood, MDF, cork, rubber, Corian, plastic, wood veneer, and matte board.

CO2 laser tube lifespan

The ECO2 GSI Advance Technology CO2 laser tube has an approximate lifespan of 10,000 hours, ensuring long-lasting performance.

Compatible software

The machine is compatible with RDWorks, LightBurn, and SmartCarve software. It also supports design files from Photoshop, Illustrator, CorelDraw, and AutoCAD.

Power and cooling

The Versa STAR operates on AC 110V (±10%) 60Hz and includes a CW5200 water chiller for efficient cooling.
