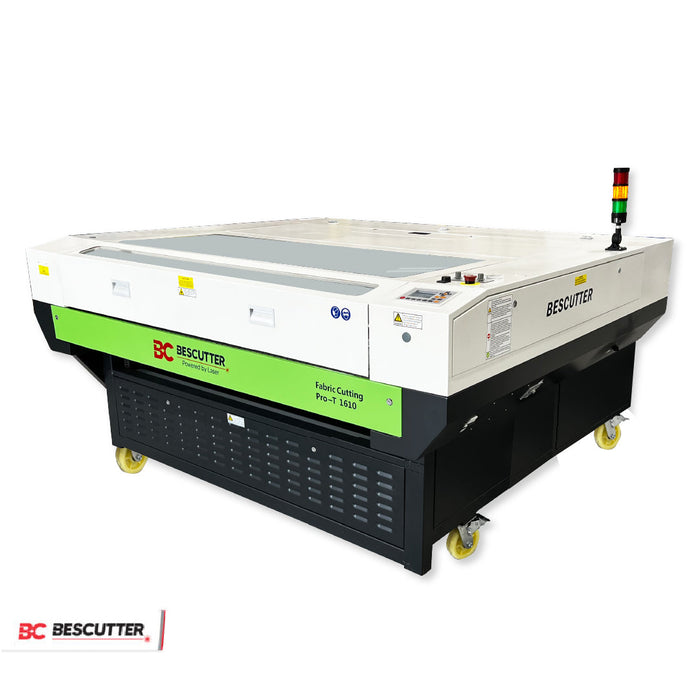

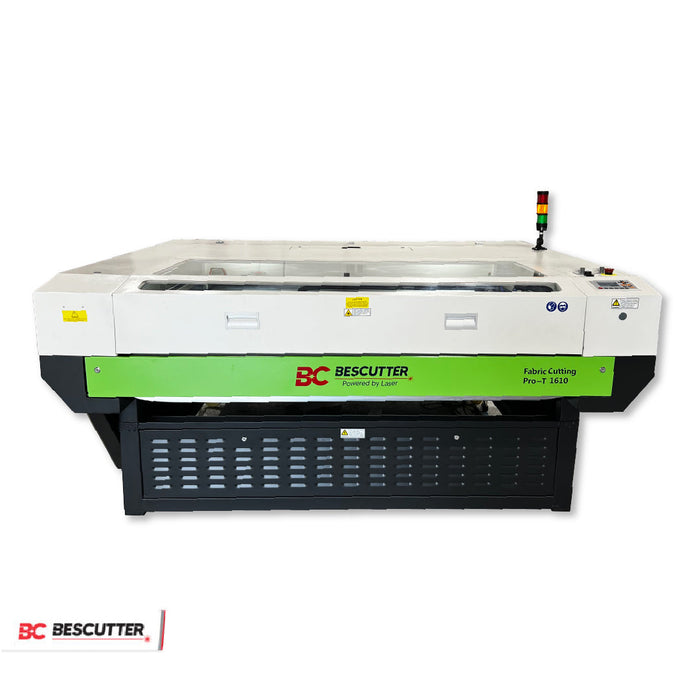

Fabric PRO, a state-of-the-art CO2 laser machine designed to deliver exceptional performance in fabric engraving and cutting. With speeds of up to 600 mm/s, the Fabric PRO stands out for its rapid and efficient engraving processes, enabling precise and detailed results in record time.
Download ALL SYSTEM INCLUDED BESCUTTER FABRIC PRO 63''X39'' - 71''X39'' | 130 - 150W | CO2 LASER CUTTER & ENGRAVER | AVAILABLE DOUBLE HEAD, CONVEYOR BELT AND AUTO-FEEDER Brochure and Tech Sheet
| Laser Power: | 130W (150W Optional) |
| Laser Tube Type: | ECO2, GSI Advance Technology, JK LASER® CO2 laser tube, 10.6 µm wavelength (ECO2) Lifetime: 10,000 hours Approx |
| Power Supply: | AC 220V (±10%) 60Hz |
| Focus Lens: | 2.0" Focal Lens |
| Working Area: | 63" (1600 mm) x 39" (990 mm) - 71'' (1803mm) X 39'' (990mm) |

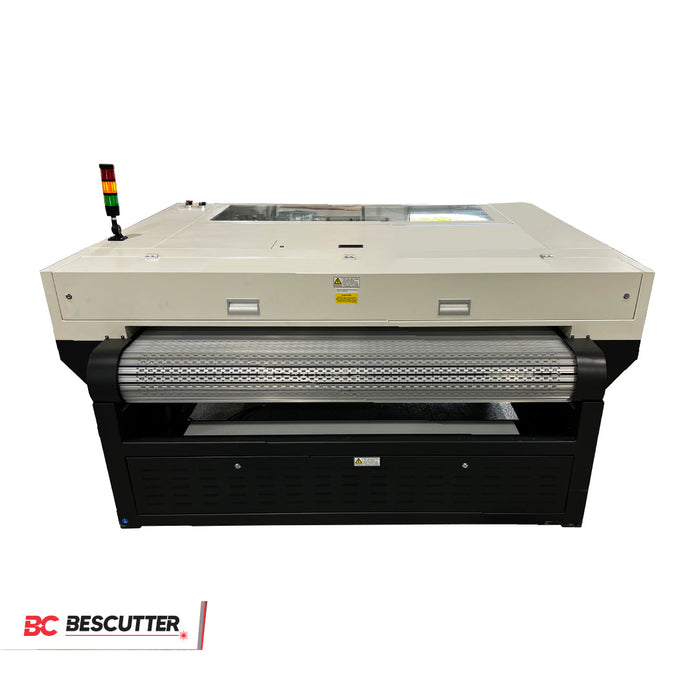

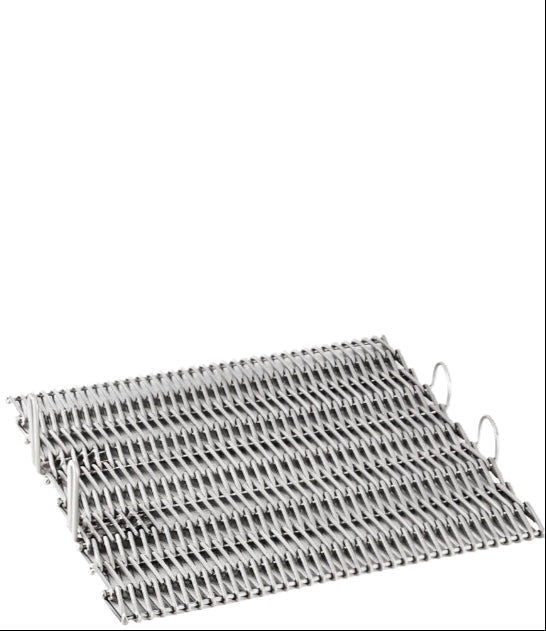

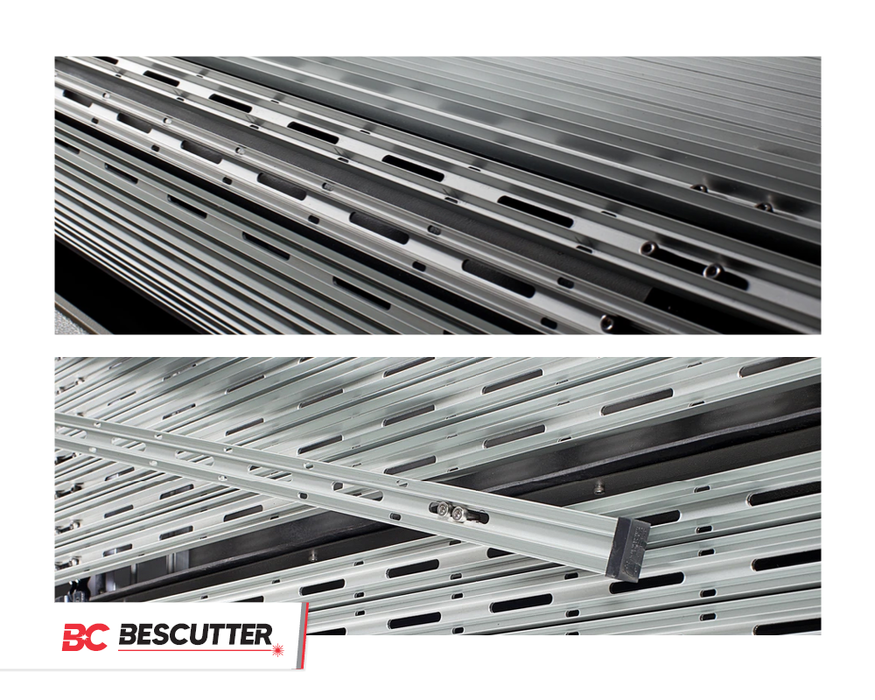

| Working Platform: | E-shapes blade mesh conveyor belt |
| Z-Axis Displacement: | N/A |
| Max Moving Speed: | 39 in/s (700 mm/s) |

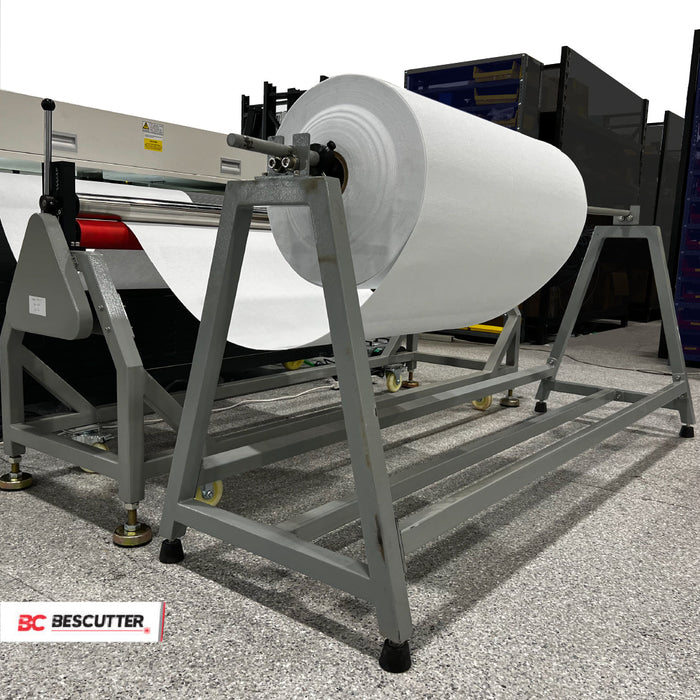

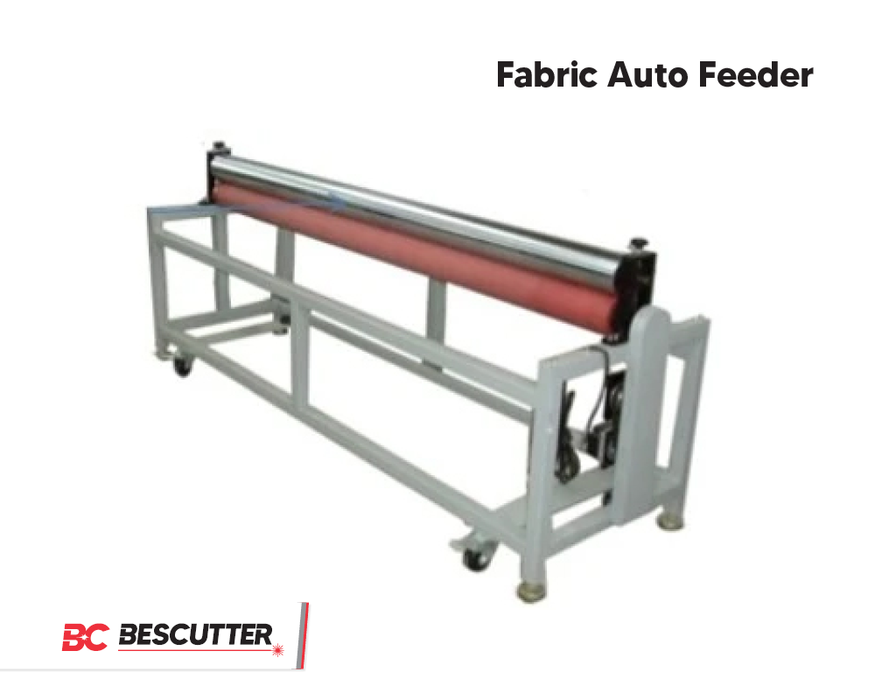

| Pass-Through Door: | Auto-Feeder textile back |

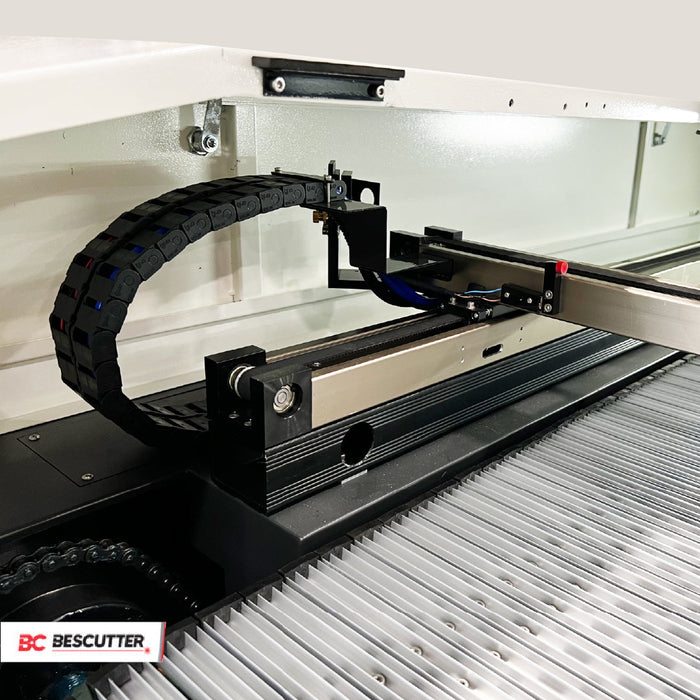

| Transmission: | Belt/ Stepper motor |
| Operation Mode: | Software / Embedded Computer |
| Machine dimensions: | (63"x 39") 87" x 68" x 46" (2200mm x 1730 mm x 1169 mm) / (71'' X 39'') 95" x 87" x 45" (2413mm x 2209mm x 1143mm) |
| Net Weight: | (63"x 39") 1587 lbs (720Kg) / (71'' X 39'') 1787 lbs (810Kg) |
| Gross Weight: | (63"x 39") 1650 lbs (748Kg) / (71'' X 39'') 1850 lbs (839Kg) |
| Package Dimensions: | (63"x 39") 92" x 73" x 51" (2336mm x 1854mm x 1295mm) / (71'' X 39'') 114" x 84" x 71" (2895mm x 2133mm x 1803mm) |

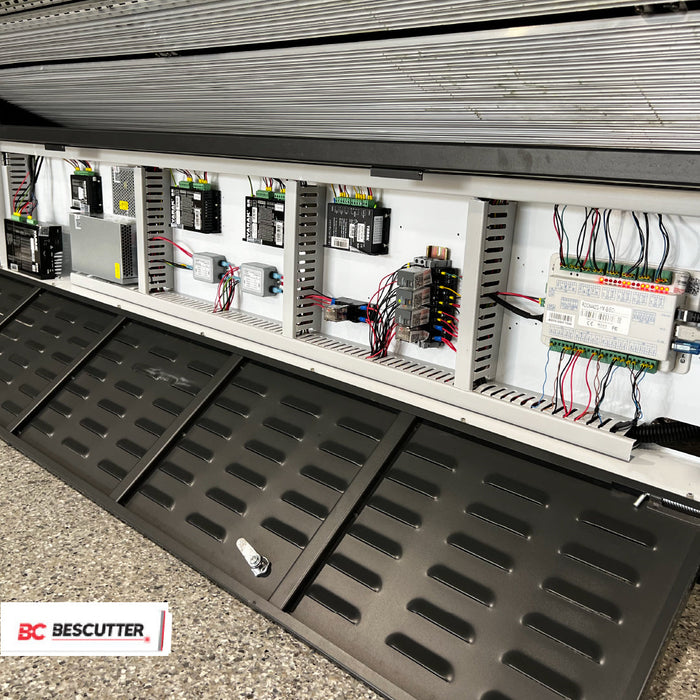

| Controlling System: | RuiDa controller / RDC6442G-YM-B(EC) |
| Software: | Smartcarve / LightBurn® (optional) |
| Connection Method: | USB Cable / Ethernet |
| Software Compatibility: | Photoshop, Illustrator, CorelDraw and AutoCAD |
| Technical Support Service: | Dedicated USA technical support Zoho desk platform |
| Limited Warranty: | 2 Years on the machine body, auxiliary equipment, hardware, and software. / 1 Year on the laser tube. / Lenses and mirrors are not covered by warranty |
| Certification: | CE, ISO |
| Class: | Class 4 Laser |

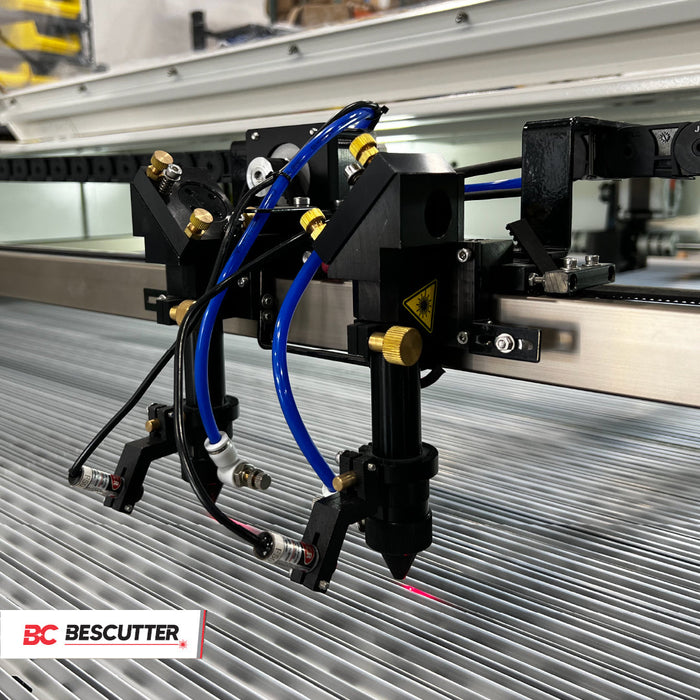

| Optional Upgrades: | Double Laser Head |
| Extraction System: | (2)Exhaust fan 1HP / 750W |

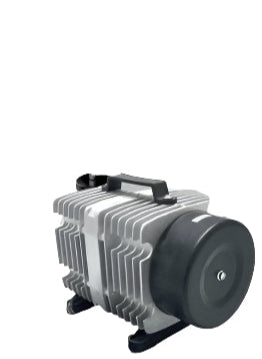

| Assistant air: | (2) Air compressor Hailea 110V |
| Water chiller: | S&A CW 5200 industrial refrigerated chiller |
maximum laser power of the machine is 130W, with a 150W optional upgrade.
The expected lifetime of the laser tube is approximately 10,000 hours
No, the machine does not have a Z-Axis displacement.
