COOLING MODE
Air cooling
LASER SOURCE
MAX Photonics
ENGRAVING AREA
From 110mm x 110mm to 300mm x 300mm
POWER
30W/50W
Description

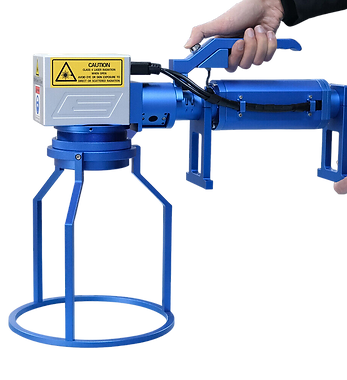

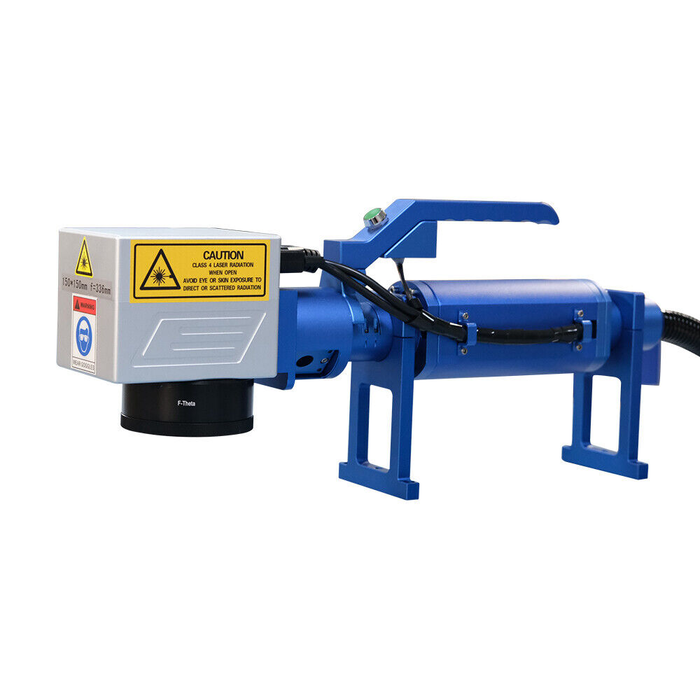

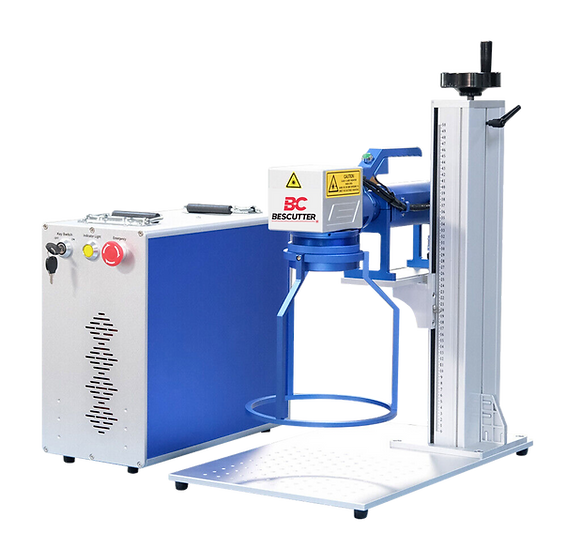

The BesCutter Handheld Galvo Fiber Laser Engraver with Portable Head is the perfect tool for projects requiring precision and customization.
FEATURES
- High flexibility and easy to carry

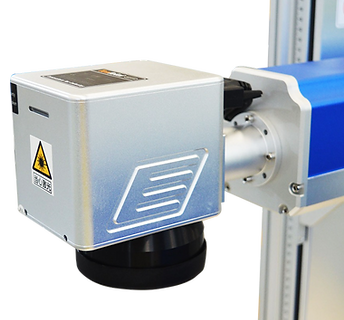

- Beijing sino-galvo high speed galvanometer
- Double red light focusing system
- Visible red laser for part alignment and pre-mark preview
- Laser indicator & Remote interlock device for U.S. FDA compliance
- Leveling ruler

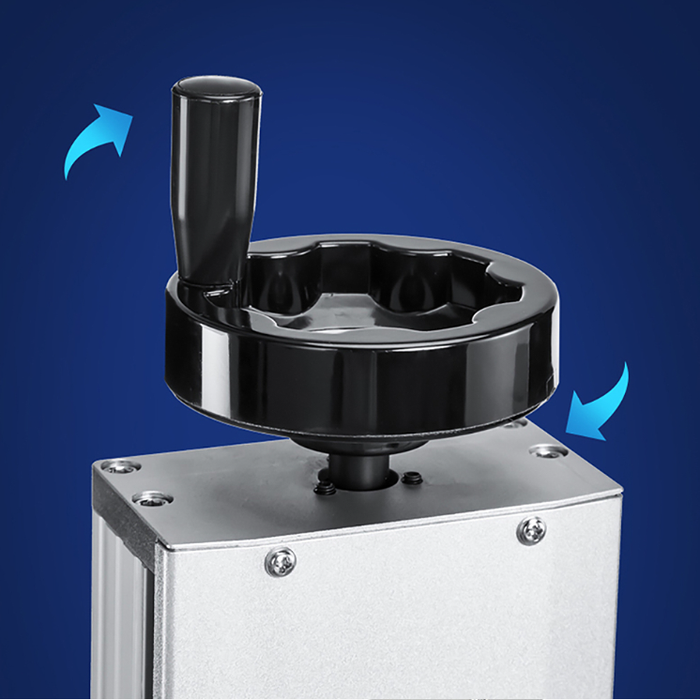

- Crank

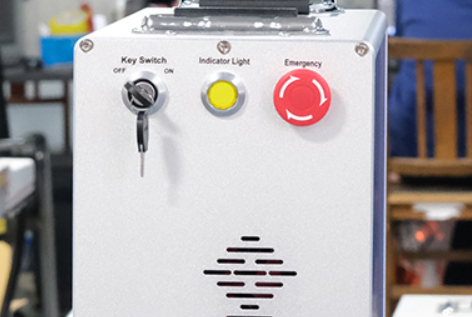

- Key switch + Red light switch + Emergency switch + Foot switch

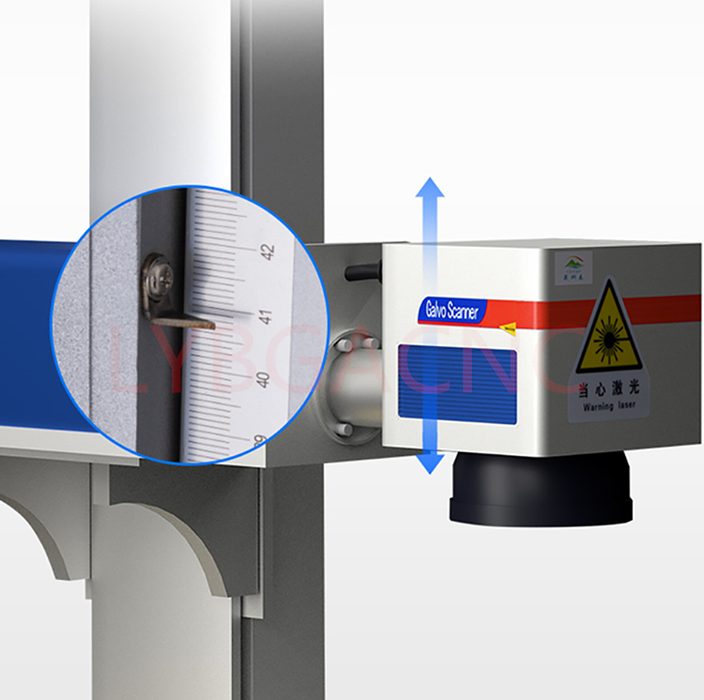

- Manual up/down adjustable Z-axis & HD scale included

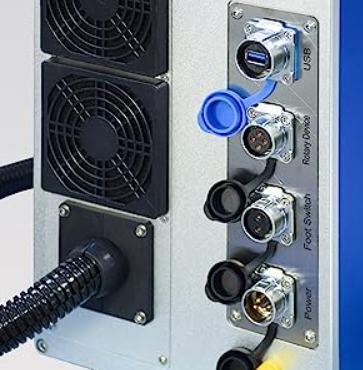

- Industrial connection port
- USB port

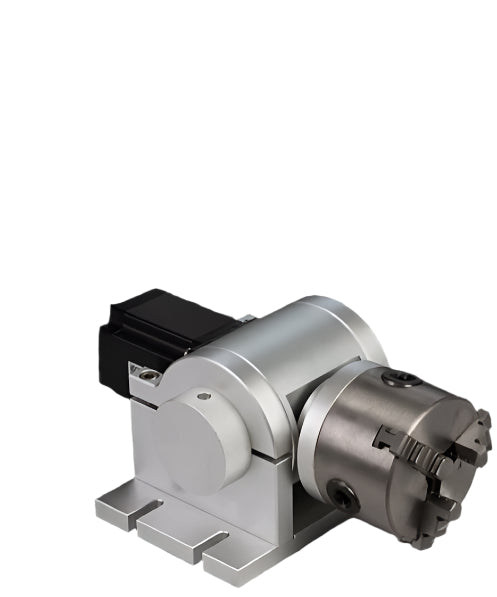

- Rotary port
- Foot switch port
- Power port
- Tool box (CD guiding videos, user's manual, testing materials etc.)
RESOURCES
Download the technical data sheet and brochure HANDHELD TYPE GALVO | Fiber Laser Engraver with Portable Head
ESPECIFICACIONES TÉCNICAS
| Power: | 30W - 50W |
| Laser Wavelength: | 1.064nm ± 10nm |
| Engraving Depth: | ± 0.3 to 1 mm (Depending on material) |
| Engraving Area: | 110mm x 110mm / 150mm x 150mm / 200mm x 200mm / 300mm x 300mm |
| Fiber Laser Source: | MAX Photonics |
| Engraving Speed: | Up to 10,000 mm/s |
| Controller (Software): | EzCad 2 (Compatible: Lightburn) |
| Lens: | F-theta |
| Power Stability (8h): | <1.5%rms |
| Module Lifespan: | 100,000 Hours |
| Cooling Method: | Air Cooling |
| Compatible Operating Systems: | Windows XP / Windows 7 / Windows 8 / Win10 32-64bits |
| Packaging Dimensions: | 850 x 370 x 370 mm |
| Operating Temperature: | 15°C - 35°C |
| Energy Consumption: | <800W |
| Power Supply: | 110V / 60HZ / 1-PH |
MAIN COMPONENTS
