LASER CUTTING HEAD
Raytools
LOADING CAPACITY
220 Chuck: 342 lbs; 120 Chuck: 154 lbs
SOFTWARE
TubesT
TUBE RANGE
295” (7500 mm)
DESCRIPTION
The TUBE Master 3000W - 4000W Fiber Laser Tube Cutting Machine is a high-performance cutting system designed for precision and efficiency. With a power range of 3000W to 4000W, it is capable of cutting various metals, including steel, aluminum, and stainless steel. The machine features advanced fiber laser technology, offering fast, clean cuts and reduced material waste, making it ideal for industries requiring high-quality tube processing. Its robust design ensures long-lasting reliability and precision for complex cutting tasks.
FEATURES
- Automatic bundle feeding function (optional) to reduce the number of operators and improve the processing efficiency.
- Automatic identification system of tube section (optional) for the mixed tubes feeding, automatic identifying the tube type, automatic access to the process library, prompt alternative processing procedures.
- Professional tube cutting software to achieve "Full time cutting, Efficient cutting"
Resources
Download TUBE MASTER 3000W - 4000W | Fiber Laser Tube Cutting Machine Brochure and Tech Sheet
Tech specifications
| Specification | Details |
|---|---|
| Tube Range (length) | 295” (7500 mm) |
| Tube Diameter | Standard: 0.78" - 8.66" (20 - 220 mm) Optional: 0.39" - 4.7" (10 - 120 mm) |
| X-axis | 295” (7500 mm) |
| Y-axis | 7.87” (200 mm) |
| A, B-axis | Infinite Rotation |
| Loading Capacity | 220 Chuck: 342 lbs; 120 Chuck: 154 lbs |
| X, Y-axis Positioning Accuracy | ±0.03 mm/1000 mm |
| X, Y-axis Re-positioning Accuracy | ±0.05 mm |
| A, B-axis Positioning Accuracy | ±30° |
| A, B-axis Re-positioning Accuracy | ±10° |
| X, Y-axis Max Positioning Speed | 100 m/min |
| Max Positioning Speed | 100 rpm |

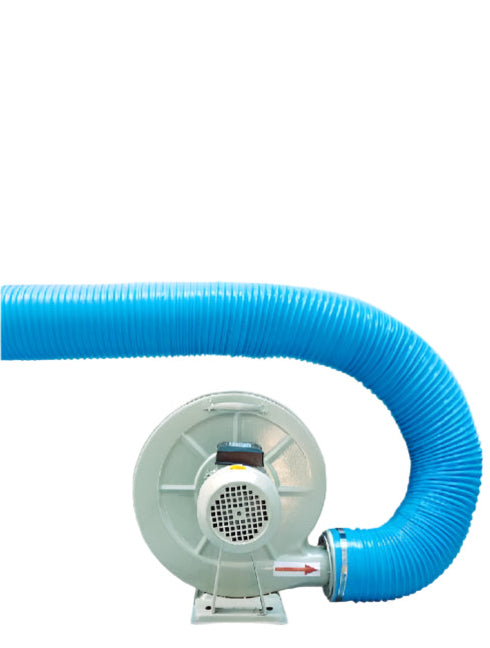

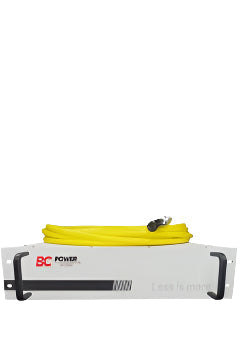

| Laser Resonator | BC Power / MAX |
| Optional Laser Wattage | From 1,500W to 4,000W |

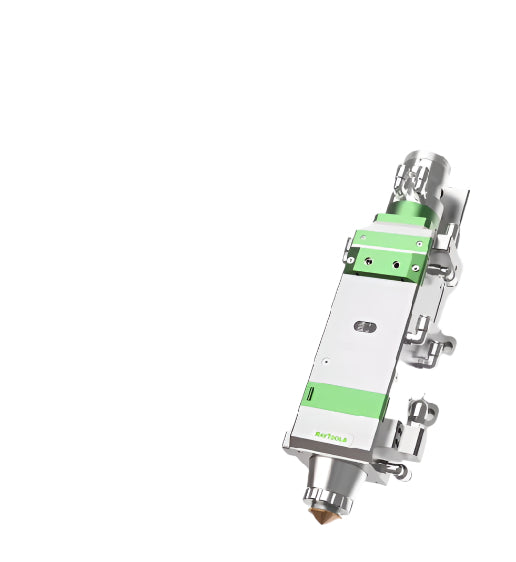

| Laser Head | Raytools |
| Machine Weight | 14,330 lbs (6500 kg) |
| Dimensions | 472” x 87” x 91” (12000 x 2200 x 2300 mm) |
