LASER SOURCE

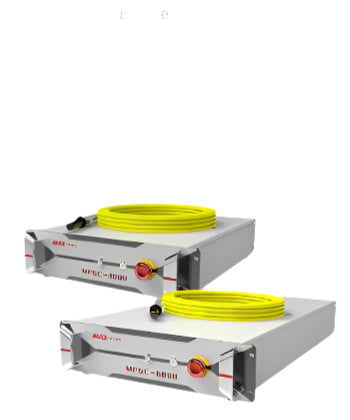

This model equips with MAX Photonics fiber laser source
WORK TABLE DIMENSIONS
3000mm x 1500mm
LASER POWER
3000– 6000W
DESCRIPTIONS

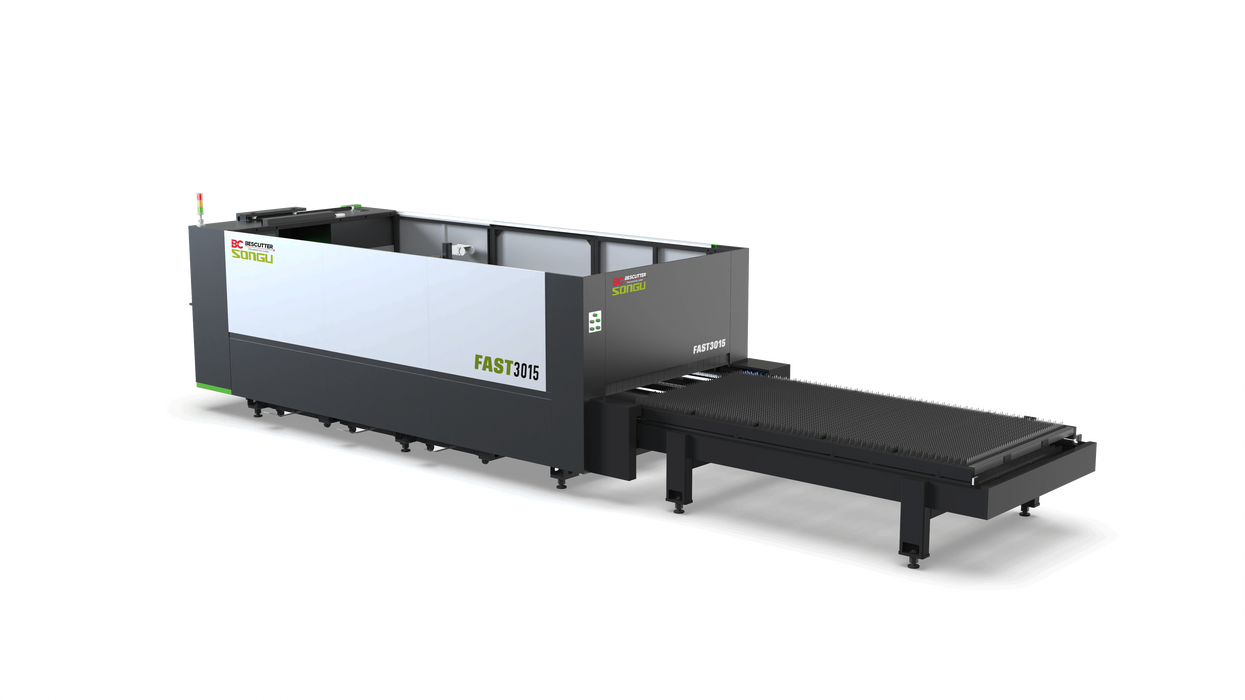

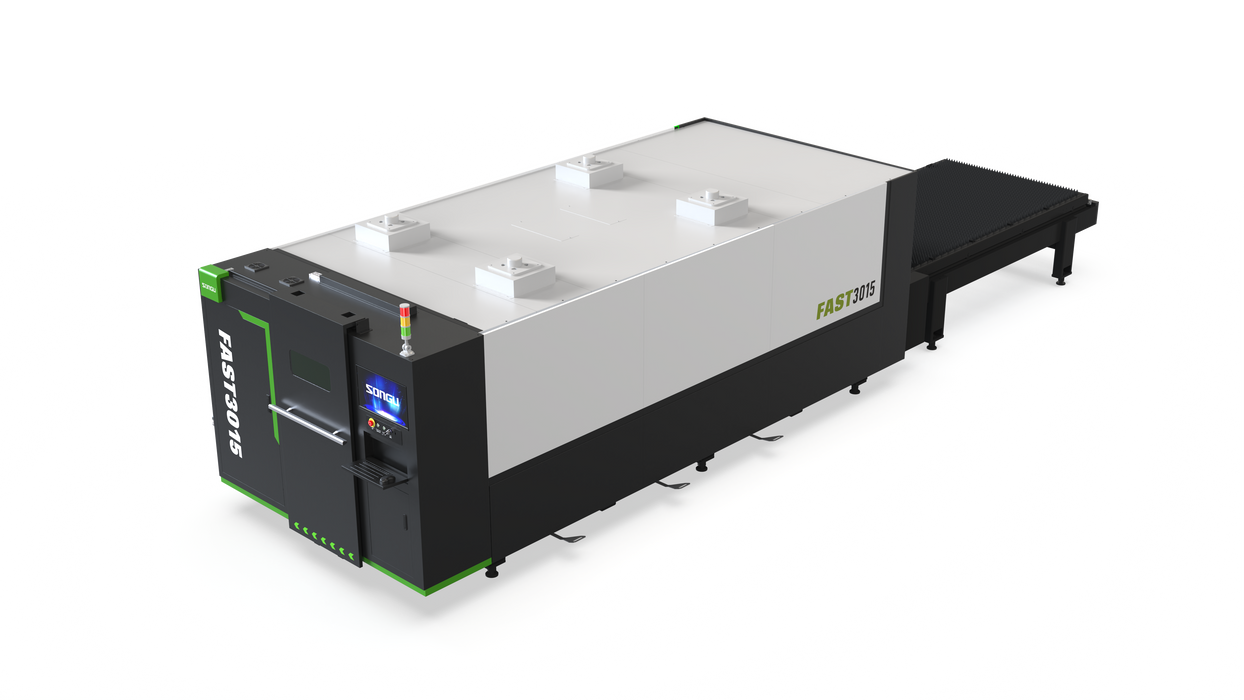

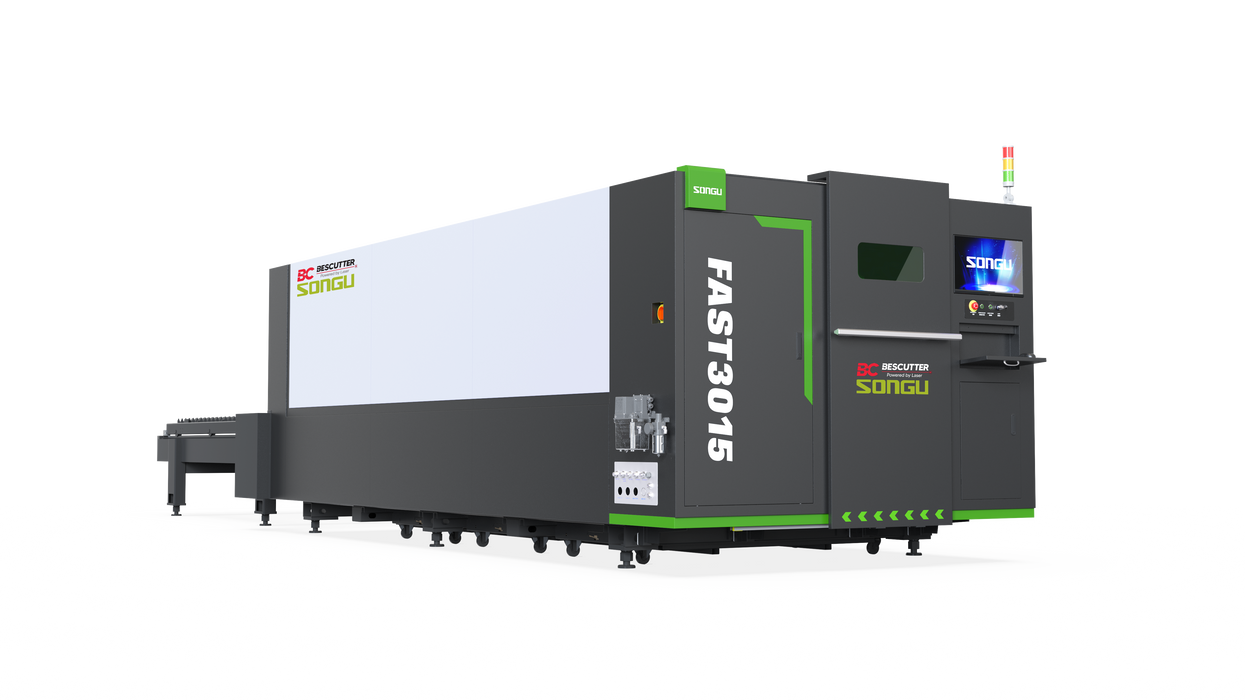

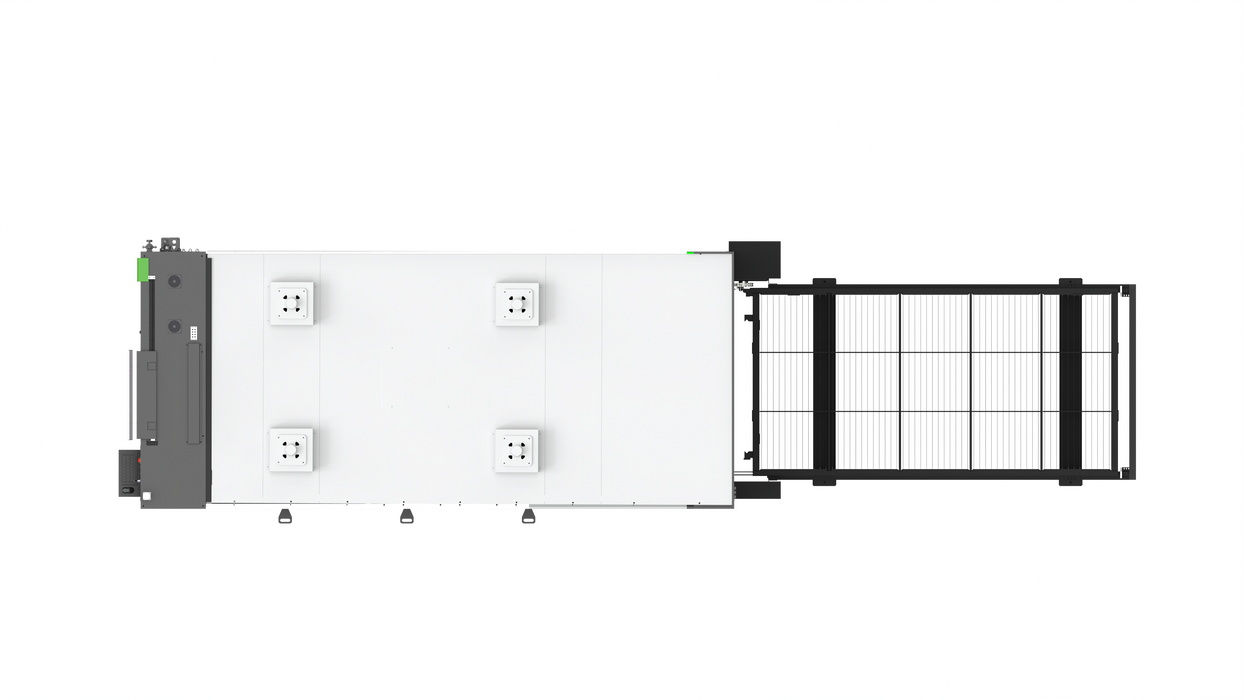

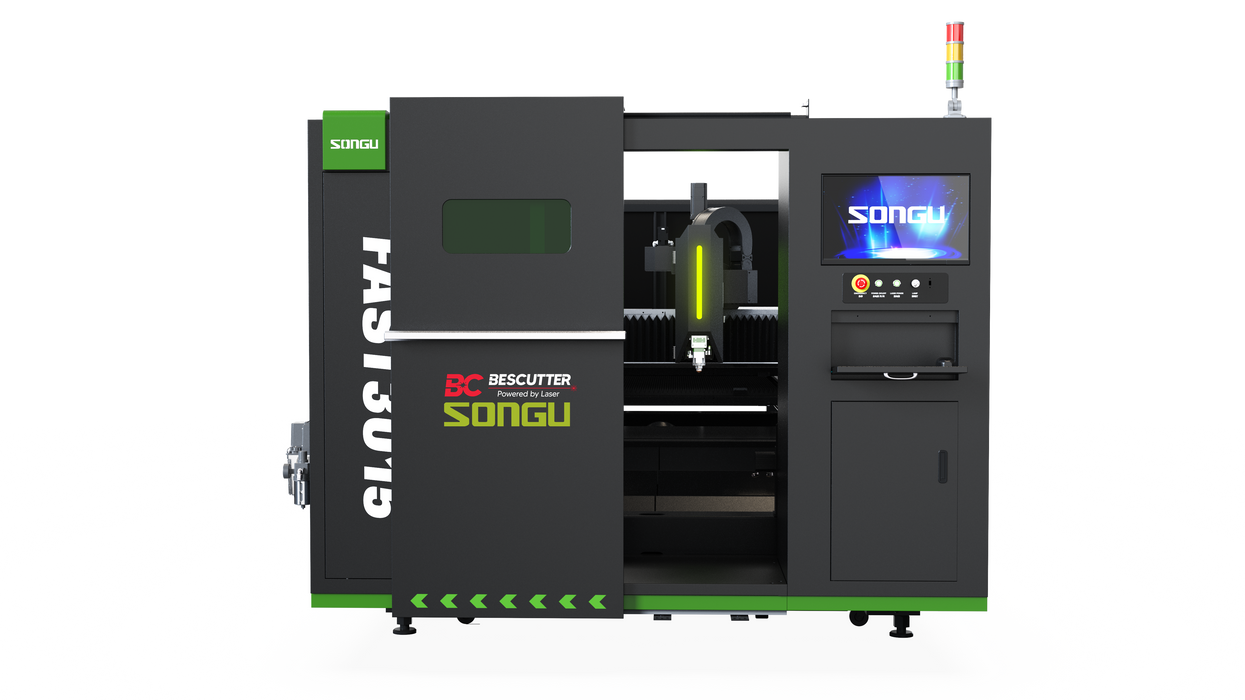

The FAST3015 - C fiber laser cutting machine is a laser processing solution designed for
manufacturing industries such as shipbuilding, bridge construction, construction machinery ,wind power, aerospace, military industry, automotive, steel structure, and port machinery.
FEATURES
- Gantry Dual Gear Rack and Dual Servo Motor Transmission Structure: High inertia and torque output with a maximum acceleration of 0.8G, improving production efficiency.
- High-Strength Welding Process: Ensures high precision and stability, eliminating vibrations during high-speed cutting.
- Large Gantry Machine Tool: Precision machining with annealing and aging treatment to eliminate internal stress, ensuring
geometric accuracy within 0.03mm. - Lightweight and Rigid Aluminum Beam: Made from extruded aluminum with excellent dynamic performance.
- High Energy Efficiency: Laser electro-optical conversion efficiency exceeds 30%, saving energy and maximizing productivity.
Resources
Download the technical data sheet and brochure FAST 3015 | 3000-6000W | Fiber Laser Metal Sheet Cutting Machine
ESPECIFICACIONES TÉCNICAS
| Specification | Details |
|---|---|
| Working area | 3000mm x 1500mm |
| Laser Power | 3000W/6000W |
| Transmission System | Gantry dual-rack dual-servo drive |
| Positioning speed (MAX) | 140m/min |
| Positioning accuracy | 0.05mm/m |
| Repositioning accuracy of clamp | ±0.03mm |
| Working environment | 0-45°C, Humidity≤80%, non-condensing |
| Power supply | Three phase 380V/50Hz or 60Hz |
| Format | DXF, NC, NSP, CNC etc |
| Overall size | 9100mm×2280mm×1900mm |
COMPONENTS
