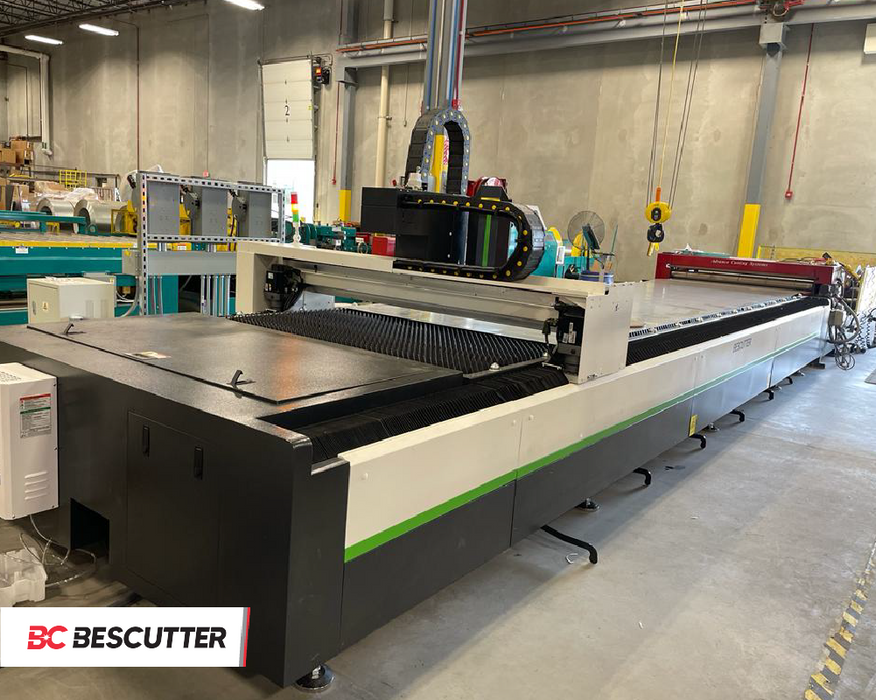

The Accu Star Fiber Laser Cutting Machine by BesCutter packs industrial-grade performance into a surprisingly small footprint. Ideal for businesses looking to add laser cutting capabilities without sacrificing valuable workshop space
Download ACCU STAR | 1500-3000W | Fiber Laser Metal Sheet Cutting Machine Brochure and Tech Sheet

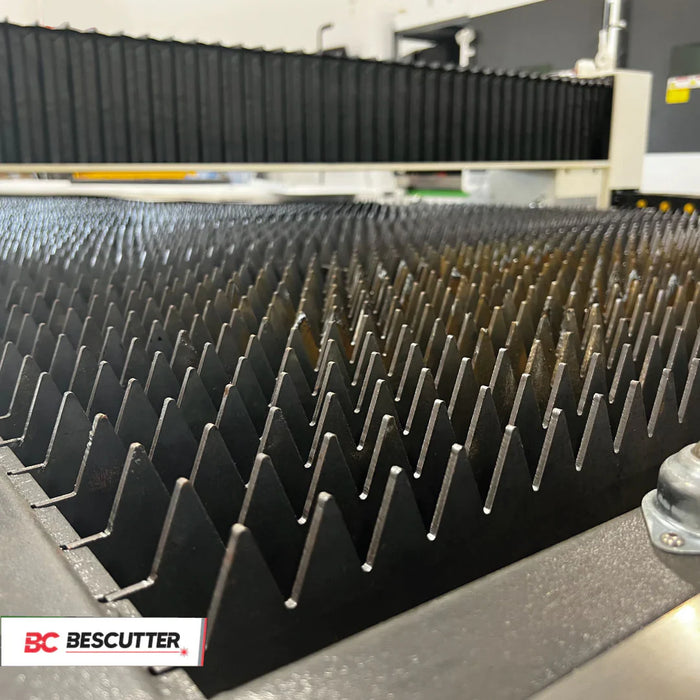

| Working Area: | 59" X 240" (1500 mm X 6096 mm) |
| Overall Dimension: | 197" X 89" X 75" (5010 mm X 2260 mm X 1900 mm) |
| Weight: | 6114 Lb (3000 kg) |
| Positioning Accuracy: | 0.001181" (±0.03 mm) |
| Repeated Positioning Accuracy: | 0.000787" (±0.02 mm) |
| Maximum Speed: | 2362 in/min (60 m/min) |
| Maximum Accelerated Speed: | 0.6G |
| Supply Voltage: | 380 V / 50Hz - 60Hz |
| Working Environment: | Clean Temp: 0~45℃, Humidity: ≤80% |

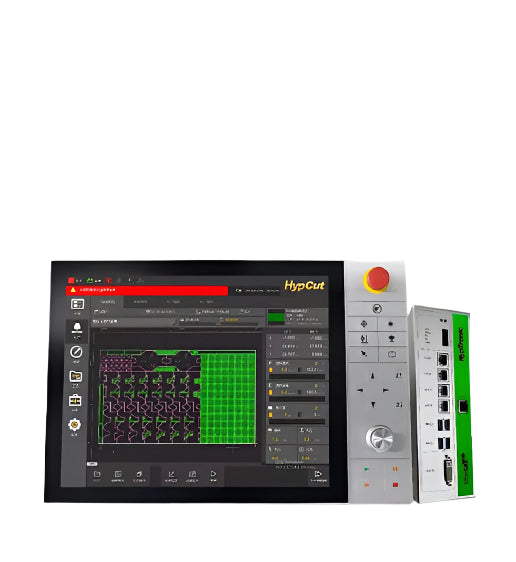

| Controlling System: | FSCUT2000S |

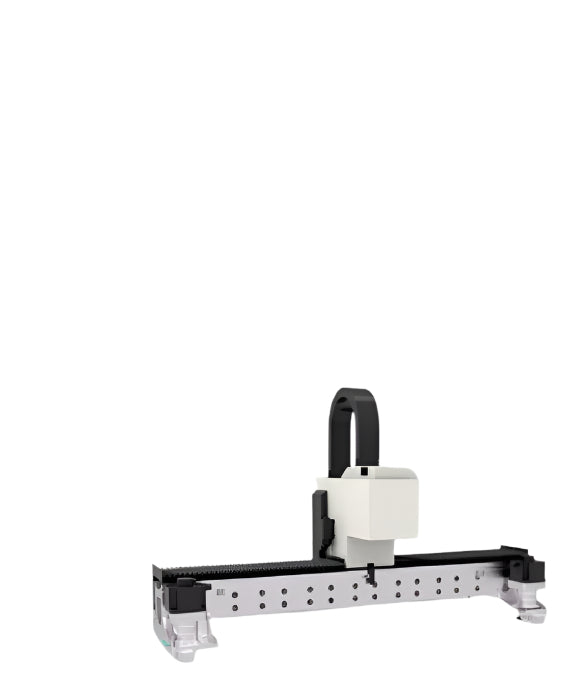

| X Axis Stroke: | 60" (1525 mm) |
| Y Axis Stroke: | 240" (6096 mm) |
| Z Axis Stroke: | 4.7" (120 mm) |

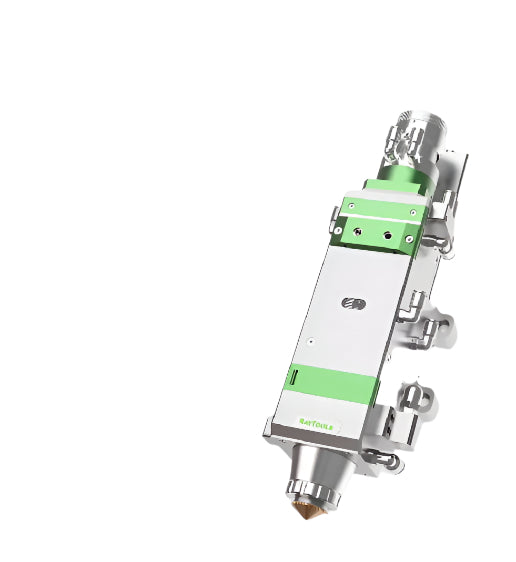

| Laser Head: | RAYTOOLS |
| Lubrication System: | Optimized Autolubrication System |
CypCut sheet cutting software is an in-depth design for fiber laser cutting industry.
This model equips with BC Beamforce & MAX Photonics fiber laser source
ACCU STAR 5' X 10' // 5' X 20'
1500W – 3000W
