SOFTWARE
CypCut 2000
LASER HEAD
RAYTOOLS
WORK TABLE
5'X 10'
LASER POWER
1500W-3000W
DESCRIPTION

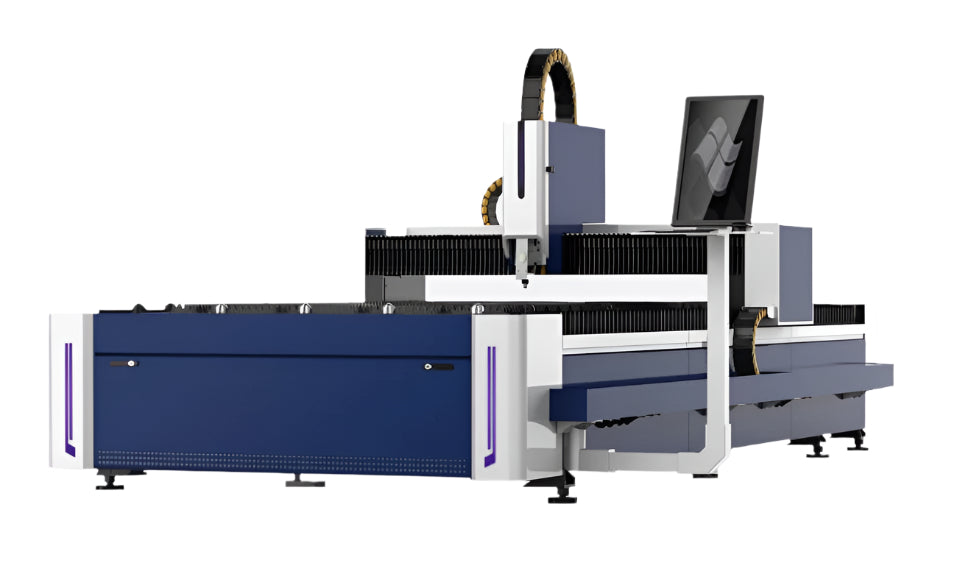

The fiber laser cutting machine can handle up to 3000W of laser power. It is suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-coated zinc plate, copper, and other metals.
FEATURES
- The fiber laser cutting machine is a mature product that has reached the national advanced level.
- This series is recommended for the metal material processing industry.
- After annealing and aging treatment, the bed is welded into a honeycomb-shaped carbon structure, ensuring high strength and stability.
- The beam is made of aviation-grade aluminum or cast aluminum, providing high cutting precision.
- With high speed, processing efficiency is significantly improved.
Resources
Download ACCUPRO | Metal Sheet Laser Cutting Machine Brochure and Tech Sheet
Tech specifications
| Specification | Details |
|---|---|
| Model | ACCU PRO |
| Maximum Processing Range | 1500x3000mm |
| X-axis Travel | 1530mm |
| Y-axis Travel | 3050mm |
| Z-axis Travel | 290mm |
| X/Y Axis Positioning Accuracy | ±0.03mm |
| X/Y Axis Repeated Positioning Accuracy | ±0.02mm |
| Maximum X/Y Axis Movement Speed | 100m/min |
| Maximum X/Y Axis Cutting Speed | 60m/min |
| Maximum X/Y Axis Acceleration | 1.5G |
| Transmission Type | Dual-drive rack and pinion |
| Y-axis Motor Power | 1.3KW*2 |
| Work Platform Exchange Time | 15-30s |
| Guide Rail Width | 35MM |
| Work Platform Load Capacity | 800kg |
| Enclosed Laser Protection | Yes |
| Lubrication Type | Automatic Lubrication |
| Available Power | 3000W |
| Machine Dimensions (L*W*H) | 3550*2100*2110mm |
| Total Weight | 2500kg |
Key Components
