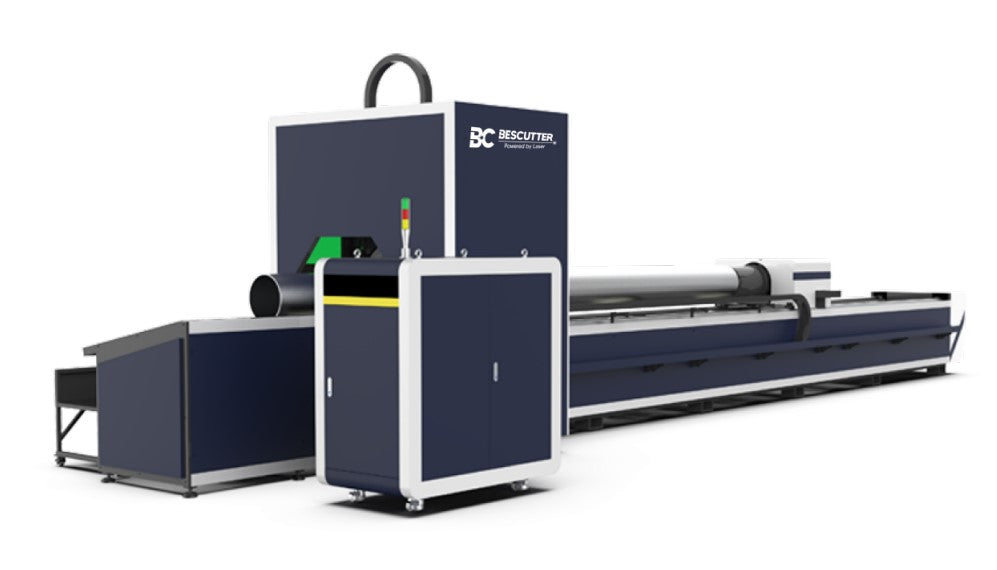

TUBE STANDARD | Fiber Laser Tube Cutting Machine

DESCRIPTION

The Tube Laser Cutting Machine is designed for high precision and speed, providing clean and accurate cuts with exceptional efficiency. It is compatible with a wide range of materials, including stainless steel, carbon steel, aluminum, brass, and other metals, making it a versatile solution for various industries. The machine features an automatic clamping system equipped with a pneumatic chuck that adjusts the tube automatically.

HIGHLIGHTED FEATURES:

  • High precision and speed: Fiber laser cutting delivers clean and accurate cuts with high efficiency.
  • Multi-material compatibility: Capable of cutting stainless steel, carbon steel, aluminum, brass, and other metals.
  • Automatic clamping system: Equipped with a pneumatic chuck that automatically adjusts the tube for better control.
  • Smart nesting software: Maximizes material utilization and reduces waste.
  • Low maintenance: Fiber laser technology offers a long lifespan and low operating costs.
  • Robust structure design: Ensures stability and durability during the cutting process.

Tech specifications

Settings list 3000W 6000W
X axis travel 320mm 320mm
Y axis travel 7000 7000
Z axis travel 200mm 200mm
X/Y axis positioning precision ±0.05mm/m ±0.05mm/m
Maximum movement speed of X/Y axis ±0.03mm ±0.03mm
Maximum cutting speed of X/Y axis 60m/min 60m/min
Maximum acceleration of X/Y axis Reference to specific processes Reference to specific processes
Transmission mode 0.6g 0.6g
Y axis motors power Zipper Zipper
Working platform exchange time 1300v 1300v
Guide rail width 25 25
Working platform load 150kg 150kg
Lubrication method Electrical lubrication Electrical lubrication
Naxine power 22k 35k
Machine dimensions (length * height) 8700mm * 1800mm * 2000mm 8700mm * 1800mm * 2000mm
Total weight 2t 2.5t
Laser brand MAX MAX
Laser head brand and model MFSC-3000 IFSC-6000
Brand and model of control system BOCHU FSCUT3000DE- BOCHU FSCUT3000DE-
Brand and model of gears and racks YYC/2 módulos YYC/2 nodules
Reducer brand and node MOTOVARIO MOTOVARIO
Brand and power of the motor HCFA 850*1+1300"3 HCFA 850W+1+1300"3
Z axis motor brand and power HCFA 400% HCFA 400%
Guide rail and slider mark HIVIN HIVIN
Brand of pneumatic components Japon SMC Japon SMC
Electronic components brand France SCHNEIDER France SCHNEIDER
Brand of electronic components S&A MRS
Control cabinet Integrated Integrated
Cross beam Steel (column) Steel (column)
Resources

Resources

Download TUBE STANDARD | Fiber Laser Tube Cutting Machine Brochure and Tech Sheet

Dowland Here

SPECIFICATIONS

X-Y AND Z AXIS TRAVEL

The X-axis travel distance is 320 mm, the Y-axis travel distance is 7000 mm, and the Z-axis travel distance is 200 mm.

LASER HEAD MODEL

The laser head model is MFSC-3000 for 3000W and IFSC-6000 for 6000W.

MACHINE DIMENSIONS

8700mm * 1800mm * 2000mm

MAXIMUM CUTTING SPEED

The maximum cutting speed on the X/Y axes is 60 meters per minute.
