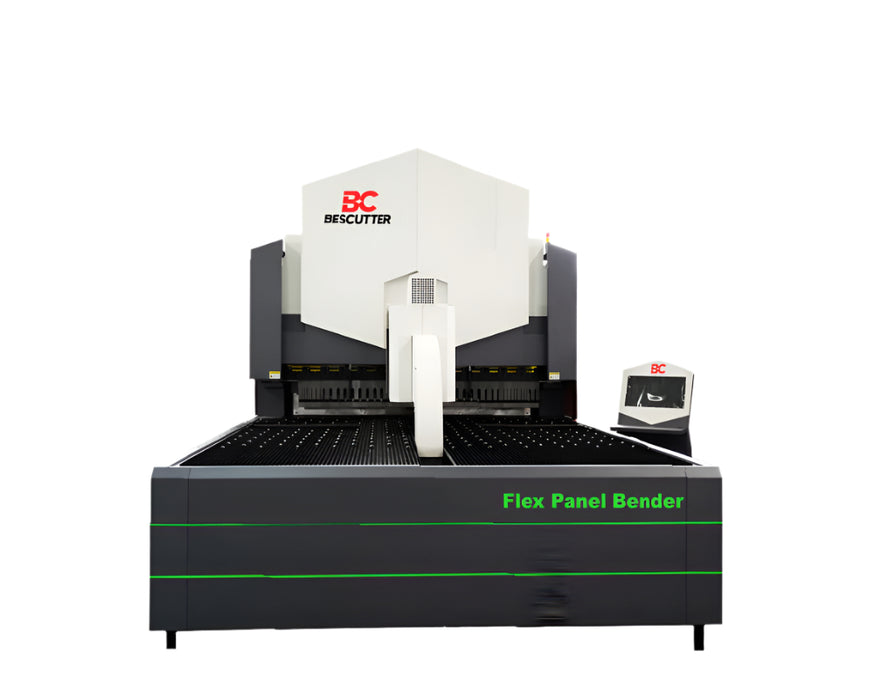

Flexible Panel Bending 15Axis | Automatic Metal Panel Bending Machine

DESCRIPTION

The Flexible Panel Bending 15 Axis Automatic Metal Panel Bending Machine is a highly automated system designed for precision bending of metal panels. It offers flexible panel shaping with 15 axes of movement, providing efficient and accurate results while minimizing labor and material waste. Ideal for a wide range of metalworking applications, it ensures high production speeds and precision in complex bends.

FEATURES

  • High degree of automation, simple operation, and low labor requirements.
  • No need for molding complex shapes (right angles, non-right angles, folded up or down) can be freely designed and produced at any time.
  • Applicable to a wide range of materials, mainly stainless steel, cold-rolled sheets, etc.
  • Compatible with various loading and unloading methods: manual loading and unloading, self-propelled robotic arm loading and unloading, and docking robotic arm loading and unloading are optional.
  • The panel thickness detection system can effectively protect the machine and reduce the waste of sheets.

ESPECIFICACIONES TÉCNICAS

Feeding structure:  Pressing arm
System minimum accuracy: 0.001mm
Max bending speed: 0.2 second/time
Max feeding speed: 90m/min (295 ft/min)
Max.bending width:  2500mm (8.2') / 2000mm (6.5') / 1400mm (4.6')
Max.Bending size (8.2'):  L2500mm X W1250mm  (8.2' x 4.1')
Max.Bending size (6.5'):  L2000mm X W1250mm  (6.5' x 4.1')
Max.Bending size (4.6'):  L1400mm X W1400mm  (4.1' x 4.1')
Max. Bending height: 170mm (6.7")
Min. Bending height: 3mm (0.12")
Min.arc radius: 0.5mm (0.02)
Rated power: 380V
Motor power: 79 KW
Machine size (8.2'): L565cm X W300cm X H340cm (222"x118"x133")
Machine size (6.5'): L510cm X W265cm X H330cm (200"x100"x129")
Machine size (4.6'): L440cm X W190cm X H290cm (173"x75"x114")
Total weight: About 12 /16 / 19 tons
Max. Bending width: stainless steel 1.2mm, cold panel 1.5mm & aluminum panel 2.0mm
Min. Panel width: 0.35mm (0.014")
Four side forming min. Inner size:

About 140mmx190mm（ excluding inverted folded side)
Double side forming min. Inner size: About 140mm(5.5")
Bending angle: 0-180 degree
Axis: 15
Coupling: TECMEN, Sino-German joint venture brand
Electrical components: Schneider, French Brand
Oil system: Taiwan Yuxiang



Resources

Resources

Descarga la ficha técnica y folleto Flexible Panel Bending 15Axis | Automatic Metal Panel Bending Machine

Dowland Here

SPECIFICATIONS

CONTROL SYSTEM

Multi-axis concurrent linkage Intelligent Numerical Control System

MOTOR POWER

79 W

BENDING SIZE OPTIONS

Option A (4.6'): 55" x 55" (1400 mm x 1400 mm) ; Option B (6.5'): 78.7" x 49.2" (2000 mm x 1250 mm) ; Option C (8.2'): 98.4" x 59" (2500 mm x 1500 mm).
