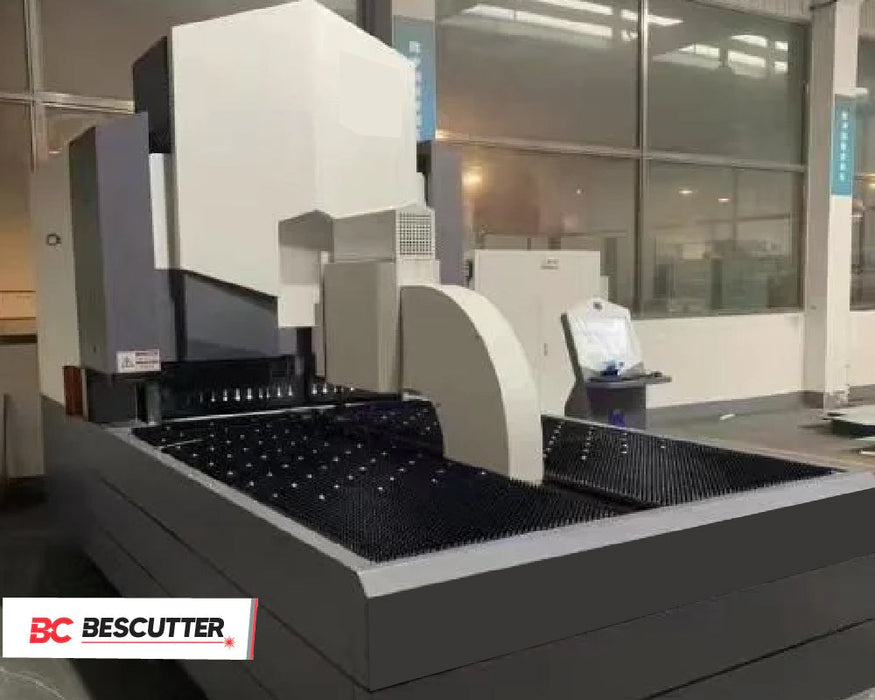

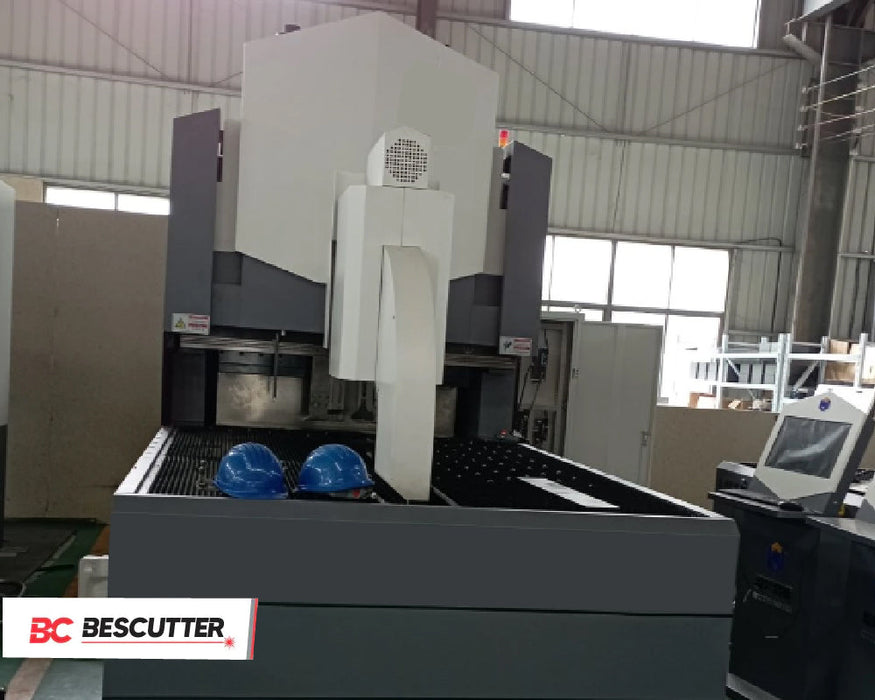

6.5' BENDING PRO 15Axis - Automatic Metal Sheet Bending Center
TECH SPECIFICATIONS
| Feeding structure: | Pressing arm |
| System minimum accuracy: | 0.001mm |
| Max bending speed: | 0.2 second/time |
| Max feeding speed: | 90m/min (295 ft/min) |
| Max.bending width: | 2000mm (6.5') |
| Max.Bending size: | L2000mm X W1250mm (6.5' x 4.1') |
| Max. Bending height: | 170mm (6.7") |
| Min. Bending height: | 3mm (0.12") |
| Min.arc radius: | 0.5mm (0.02) |
| Rated power: | 380V |
| Motor power: | 77 / 79KW |
| Machine size: | L510cm X W265cm X H330cm (200"x100"x129") |
| Total weight: | About 16 tons |
| Max. Bending width: | stainless steel 1.2mm, cold panel 1.5mm & aluminum panel 2.0mm |
| Min. Panel width: | 0.35mm (0.014") |
| Four side forming min. Inner size: | About 140mmx190mm（ excluding inverted folded side) |
| Double side forming min. Inner size: | About 140mm (5.5") |
| Bending angle: | 0-180 degree |
| Axis: | 15 |
| Coupling: | TECMEN, Sino-German joint venture brand |
| Electrical components: | Schneider, French Brand |
| Oil system: | Taiwan Yuxiang |
FUNCTION CONFIRGURATION
| Y-axis double lift positioning ruler: | The Y-axis double-lifting ruler can automatically clamp and position, which greatly improves the accuracy and consistency of the sheets after forming. |
| Serror-proof inspection of panel: | When the panel is used incorrectly, the system will automatically give an alarm, which can effectively avoid the damage to the machine due to the wrong use of panel size and type. |
| Oil supply self-lubricating system: | Automatic alarm for oil shortage to ensure safe operation of the machine |
| Unbalanced load detection system: | When is unbalanced the system warns and terminates the operation to effectively protect the mechanical structure. |
| Panel Thickness Detection System: | The thickness of the sheets is detected in real time during the pressing process of the pressing tool. When it is wrong the system will immediately terminate and give an alarm. |
| Automatic loading and unloading control module:: | It can be connected to the robotic arm to realize automatic loading and unloading. |
| Automatic production line interface: | It can be connected with upstream and downstream production equipment to realize automatic production |
MACHINE MAIN PARTS AND SPECIFICATIONS
